Product Summary

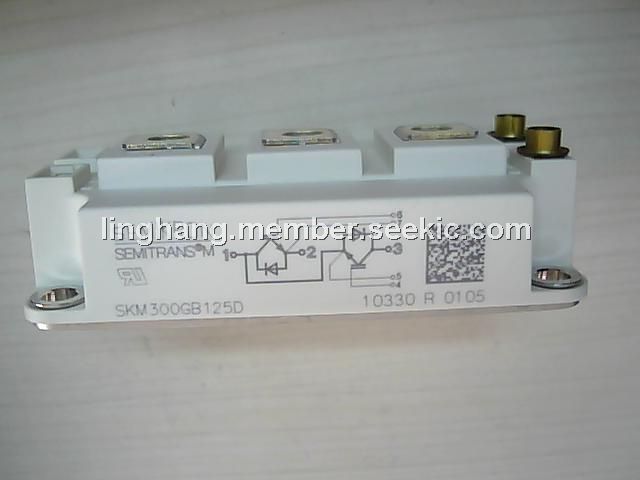

The SKM300GB125D is an Ultra Fast IGBT Module. The applications of the SKM300GB125D include switched mode power supplies at fsw>20kHz, resonant inverters up to 100kHz, inductive heating, UPS Uninterruptable power and electronic welders at fsw>20kHz.

Parametrics

SKM300GB125D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 300A when TC=25℃; 210A when Tc=80℃; (3)ICRM: 400A; (4)VGES: ±20V; (5)Tpsc: 10μs.

Features

SKM300GB125D features: (1)NPT-Non punch-through IGBT; (2)low inductance case; (3)short tail current with low temperature dependence; (4)high short circuit capability, self limiting; (5)fast & soft inverse CAL diodes; (6)isolated copper baseplate using DCB direct copper bonding technology; (7)large clearance (10mm) and creepage distance (20mm).

Diagrams

SKM300GB125D block diagram
