Product Summary

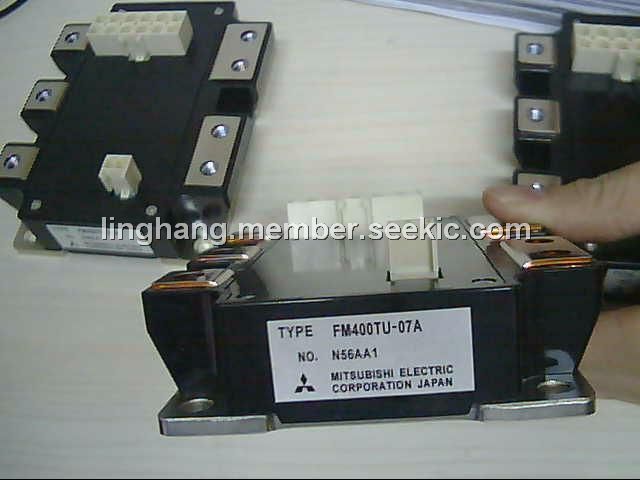

The FM400TU-07A is a kind of power module with high power switching use and insulated package. It is used in AC motor control of forklift (battery power source) and UPS.Some specifications of this product are as follows:(1)Maximum Clock Frequency:400 KHz; (2)Operating Supply Voltage:8.50V; (3)Maximum Supply Current:0.12 mA; (4)Maximum Power Dissipation:400 mW; (5)Maximum Operating Temperature:+ 180 C; (6)Minimum Operating Temperature:- 80 C.
Parametrics
Absolute maximum ratings (Tch = 25°C unless otherwise specified.):(1)VDSS,Drain-source voltage:75V at G-S Short; (2)VGSS,Gate-source voltage:±20V at D-S Short; (3)ID,drain current:200A at TC’ = 139°C*3; (4)IDM,drain current:400A at Pulse*2; (5)IDA,Avalanche current:200A at L = 10μH Pulse*2; (6)IS*1,Source current:200A at TC = 25°C; (7)ISM*1,Source current:400A at Pulse*2; (8)PD*4,Maximum power dissipation:650w at TC = 25°C; (9)PD*4,Maximum power dissipation:880w at TC’ = 25°C*3; (10)Tch,Channel temperature:–40 ~ +150°C; (11)Tstg,Storage temperature:–40 ~ +125°C; (12)Viso,Isolation voltage:2500v at Main terminal to base plate, AC 1 min.; (13)Mounting torque:3.5 ~ 4.5 N.m at Main Terminal M6; (14)Mounting torque:3.5 ~ 4.5 N.m at Mounting M6; (15)Weight:600g at Typical value.
Features
Features:(1)ID(rms):200A; (2)VDSS:75V; (3)Insulated Type; (4)6-elements in a pack; (5)Thermistor inside; (6)UL Recognized.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FM400TU-07A |
MOSFET MOD 6PAC HP 75V 200A |
Data Sheet |
|
|
||||||||||
