Product Summary

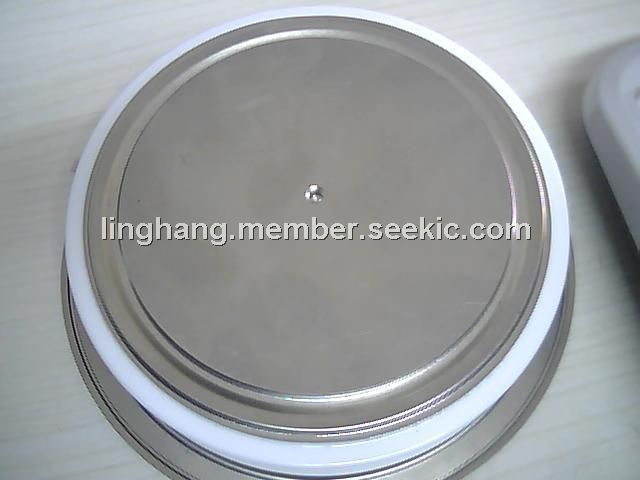

The 5STP45N2800 is a phase control thyristor. The 5STP45N2800 is patented free-floating silicon technology, low on-state and switching losses. The 5STP45N2800 is designed for traction, energy and industrial applications,optimum power handling capability,interdigitated amplifying gate.

Parametrics

5STP45N2800 absolute maximum ratings: (1)VDRM, VRRM f = 50 Hz, tp = 10ms: 2800 V ; (2)VRSM1 tp = 5ms, single pulse: 3000 V ; (3)dV/dtcrit Exp. to 0.67 x VDRM, Tj = 125℃: 1000 V/μs.

Features

5STP45N2800 features: (1)VDSM = 2800 V; (2)ITAVM = 5080 A; (3)ITRMS = 7970 A; (4)ITSM = 75000 A; (5)VT0 = 0.86V; (6)rT = 0.07mΩ

Diagrams

5STP45N2800 pin connection
