Product Summary

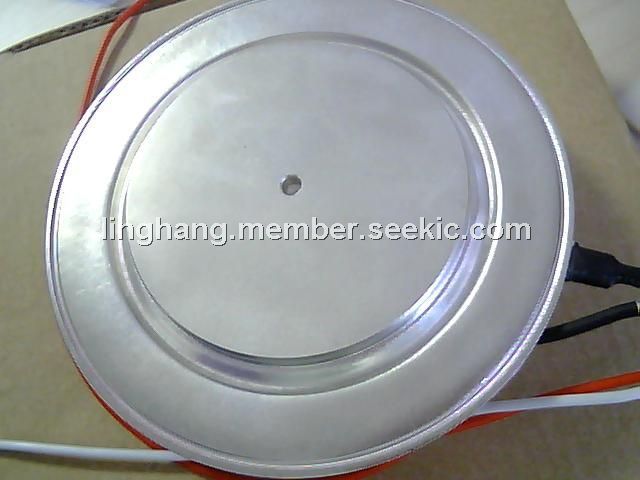

The 5STP18H4200 is a phase control thyristor. The 5STP18H4200 is patented free-floating silicon technology, low on-state and switching losses. The 5STP18H4200 is designed for traction, energy and industrial applications, optimum power handling capability. It is interdigitated amplifying gate.

Parametrics

5STP18H4200 absolute maximum ratings: (1)VDRM, VRRM f = 50 Hz, tp = 10ms: 4200 V ; (2)VRSM1 tp = 5ms, single pulse: 4600 V; (3)dV/dtcrit Exp. to 0.67 x VDRM, Tj = 125°C:1000V/μs.

Features

5STP18H4200 features:(1)VDSM = 4200 V; (2)ITAVM = 2075 A; (3)ITRMS = 3260 A; (4)ITSM = 32000 A; (5)VT0 = 0.96V; (6)rT = 0.285mΩ.

Diagrams

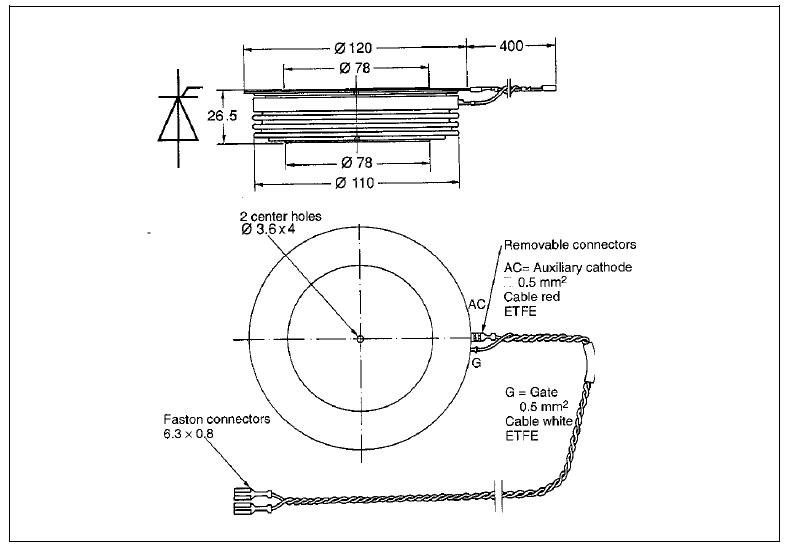

5STP18H4200 pin connection

5STP 03X6500
5STP 03X6500

Other


Data Sheet

Negotiable
5STP 1
5STP 1
