Product Summary

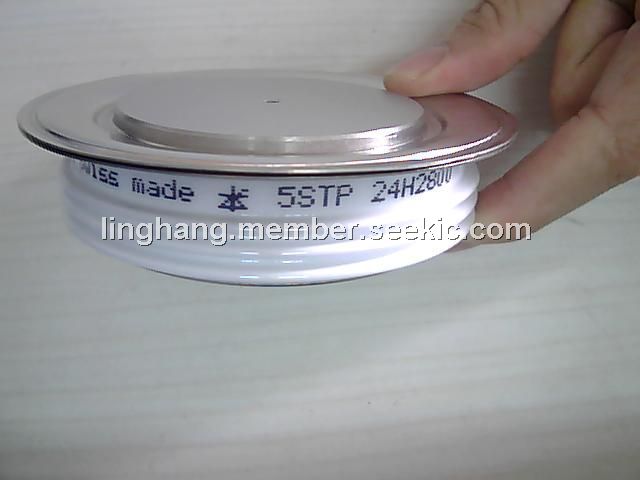

The 5STP24H2800 is a phase control thyristor. The 5STP24H2800 is patented free-floating silicon technology, low on-state and switching losses. The 5STP24H2800 is designed for traction, energy and industrial applications, optimum power handling capability. It is interdigitated amplifying gate.

Parametrics

5STP24H2800 absolute maximum ratings: (1)VDRM, VRRM f = 5 Hz, tp = 10ms: 2800 V ; (2) VDRM, Tj = 125℃: IDRM ≤ 300 mA;IRRM ≤ 300 mA; (3)VRSM1 tp = 5ms, single pulse:3000 V; (4)dV/dtcrit Exp. to 0.67 x VDRM, Tj = 125℃ : 1000 V/μs.

Features

5STP24H2800 features: (1)VDSM = 2800 V; (2)ITAVM = 2625 A; (3)ITRMS = 4120 A; (4)ITSM = 43000 A; (5)VT0 = 0.85V; (6)rT = 0.160mΩ.

Diagrams

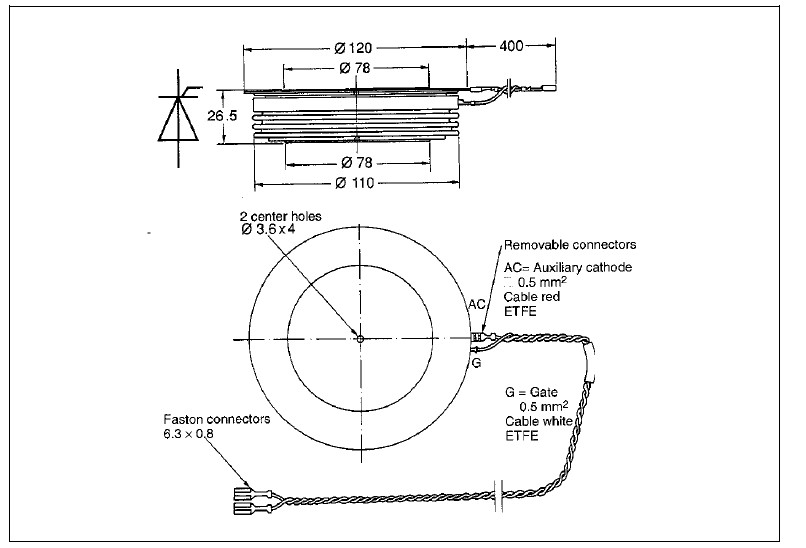

5STP24H2800 pin connection
