Product Summary

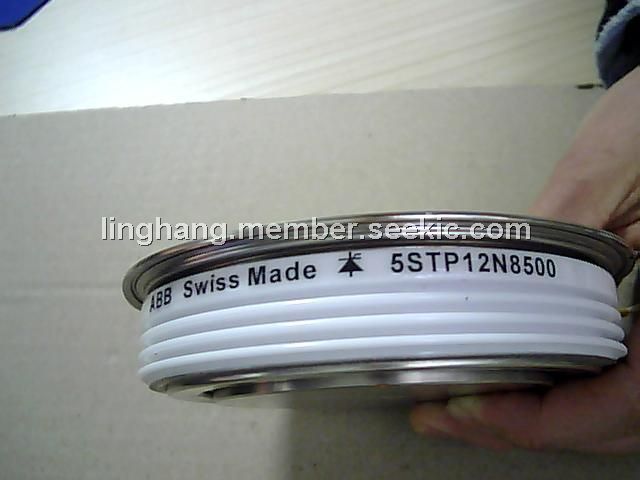

The 5STP12N8500 is a phase control thyristor. The 5STP12N8500 is patented free-floating silicon technology, low on-state and switching losses. The 5STP12N8500 is designed for traction, energy and industrial applications, optimum power handling capability. It is interdigitated amplifying gate.

Parametrics

5STP12N8500 absolute maximum ratings: (1)VDSM, VRSM f = 5 Hz, tp = 10 ms: 8500 V ; (2)VDRM, VRRM f = 50 Hz, tp = 10 ms: 8000 V ; (3)VRSM tp = 5 ms, single pulse: 9000 V; (4)dV/dtcrit Exp. to 5360 V, Tvj = 90°C: 2000V/μs.

Features

5STP12N8500 features:(1)VDRM = 8000 V; (2)VDSM = 8500 V; (3)IT(AV)M = 1200 A; (4)IT(RMS) = 1880 A; (5)ITSM = 35×103 A; (6)V(T0) = 1.25 V; (7)rT = 0.48mΩ.

Diagrams

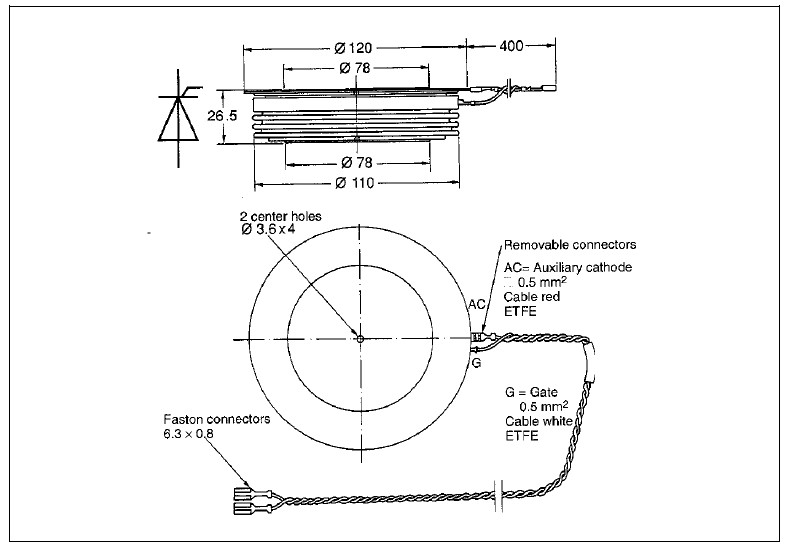

5STP12N8500 pin connection
