Product Summary

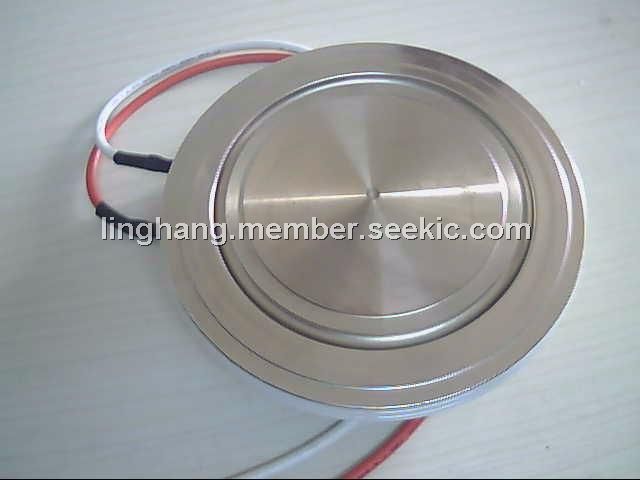

The 5SGR30L4502 is a reverse conducting gate turn-off thyristor. The 5SGR30L4502 is patented free-floating silicon technology, low on-state and switching losses. The 5SGR30L4502 is designed for annular gate electrode,industry standard housing,cosmic radiation withstand rating.

Parametrics

5SGR30L4502 absolute maximum ratings:(1)Repetitive peak off-state voltage: 4500V (VGR=2V) ; (2)Repetitive peak off-state current: 100mA (VD=VDRM;VGR=2V) ; (3)Repetitive peak reverse current: 50mA (VR= VRRM) ; (4)Permanent DC voltage for 100 FIT failure rate: 2800V (-40 Tj125℃. Ambient cosmicradiation at sea level in open air).

Features

5SGR30L4502 features: (1)VDRM=4500; (2) VITGQM=3000 ; (3)AITSM=24 kA; (4)VT0=1.90 V; (5)rT=0.70 m; (6)VDClin=2800 V.

Diagrams

5SGR30L4502 pin connection
