Product Summary

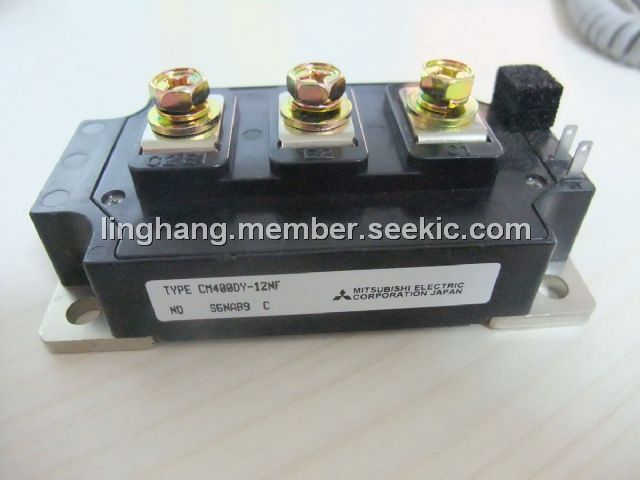

CM400DY-12NF is MITSUBISHI IGBT MODULES, which is generally for HIGH POWER SWITCHING USE. The Ic is 400A and the Vces is 600V. It is insulated type with 2-elements in a pack. When concerned to the application, the general purposes are inverters and Servo controls, etc. IE, VEC, trr & Qrr represent characteristics of the anti-parallel, emitter to collector free-wheel diode (FWDi). Pulse width and repetition rate should be such that the device junction temp. (Tj) does not exceed Tjmax rating. Junction temperature (Tj) should not increase beyond 150°C.

Parametrics

Absolute Maximum Ratings: (1)Collector-emitter voltage: AT G-E Short, 600V; (2)Gate-emitter voltage: AT G-E Short, ±20V; (3)Collector current: AT DC, TC’ = 92°C*3, 400A; (4)Collector current: AT Pulse, 800A; (5)Emitter current: 400A; (6)Emitter current: AT Pulse, 800A; (7)Maximum collector dissipation: AT TC = 25°C, 1130W; (8)Junction temperature: –40 ~ +150°C; (9)Storage temperature: –40 ~ +125°C; (10)Isolation voltage: AT the condition of Main Terminal to base plate, AC 1 min., 2500V; (11)Torque strength: 3.5 ~ 4.5N.m; (12)Weight: 400g.

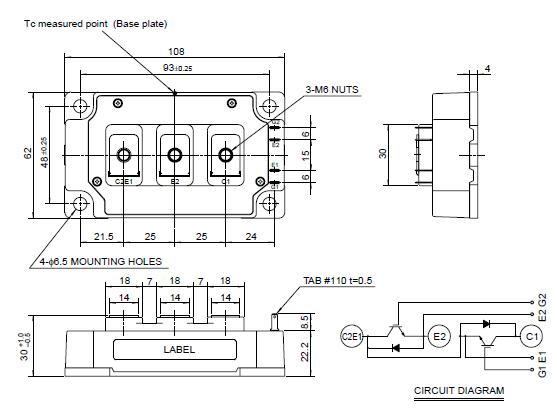

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM400DY-12NF
CM400DY-12NF


IGBT MOD DUAL 600V 400A NF SER

Data Sheet

0-1: $112.12
1-10: $106.70
10-100: $100.52
100-250: $98.97
250-500: $96.65
500-1000: $92.79
