Product Summary

The 5STP25L5200 is a phase control thyristor. The 5STP25L5200 is patented free-floating silicon technology, low on-state and switching losses. The 5STP25L5200 is designed for traction, energy and industrial applications, optimum power handling capability. It is interdigitated amplifying gate.

Parametrics

5STP25L5200 absolute maximum ratings: (1)VDSM, VRSM f = 5 Hz, tp = 10ms: 5200 V ; (2)VDRM, VRRM f = 50 Hz, tp = 10ms: 4400 V ; (3)VRSM1 tp = 5ms, single pulse: 5700 V; (4)dV/dtcrit Exp. to 0.67 x VDRM, Tj = 125℃ : 2000 V/μs.

Features

5STP25L5200 features: (1)VDSM = 5200 V; (2)ITAVM = 2760 A; (3)ITRMS = 4340 A; (4)ITSM = 42000 A; (5)VT0 = 1V; (6)rT = 0.225mΩ.

Diagrams

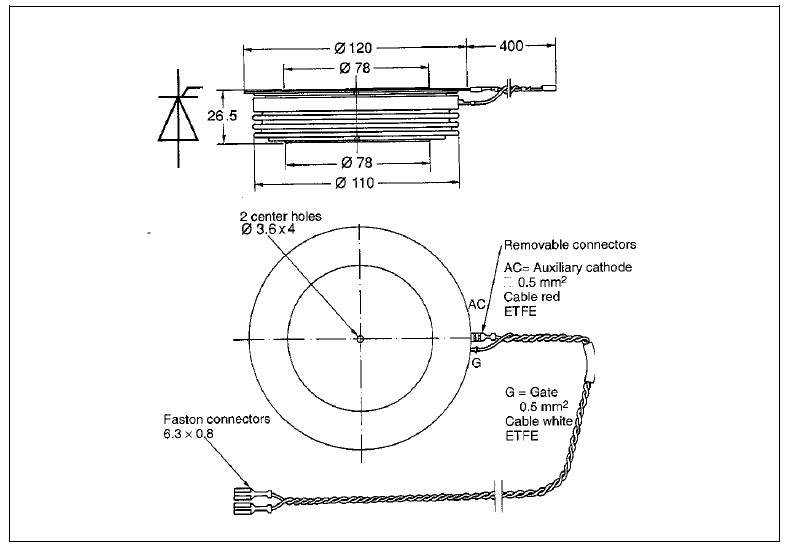

5STP25L5200 pin connection
