Product Summary

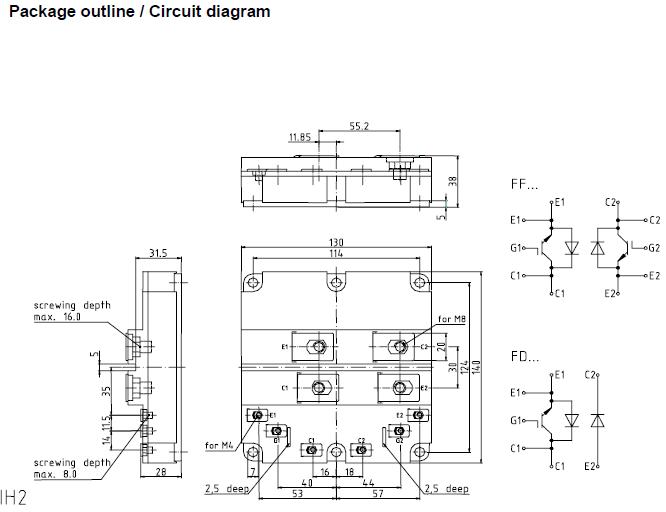

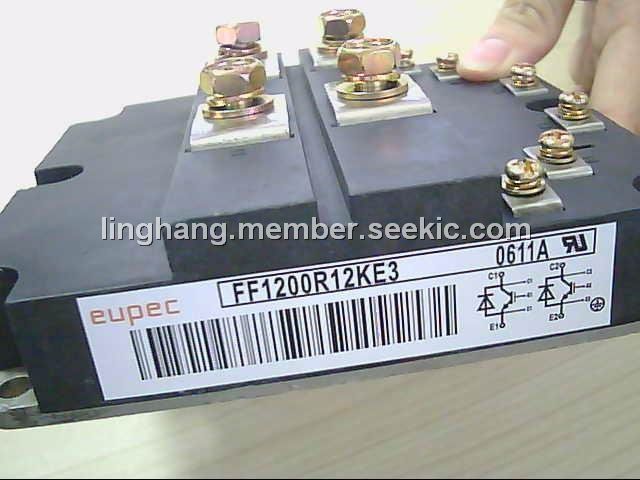

FF1200R12KE3 is a IGBT-Module. The present product data is exclusively subscribed to technically experienced staff. This Data Sheet is describing the specification of the products for which a warranty is granted exclusively pursuant the terms and conditions of the supply agreement. There will be no guarantee of any kind for the product and its specifications. Changes to the Data Sheet are reserved.

Parametrics

Absolute Maximum Ratings: (1)collector emitter voltage, Tvj= 25°C, VCES: 1200V; (2)DC collector current, Tc= 70°C, IC, nom: 1200A; (3)DC collector current, Tc= 25°C, IC: 1600A; (4)repetitive peak collector current, tp= 1ms, Tc= 80°C, ICRM: 2400A; (5)total power dissipation, Tc= 25°C, Transistor, Ptot: 5kW; (6)gate emitter peak voltage, VGES: +/- 20V; (7)DC forward current, IF: 1200A; (8)repetitive peak forward current, tp= 1ms, IFRM: 2400A.

Features

Features:(1)internal insulation: Al2O3; (2)creepage distance: 17mm; (3)clearance: 10mm; (4)comperative tracking index: >400; (5)weight: 340g; (6)mounting torque: screw M5, 4,25 to 5,75Nm; (7)terminal connection torque, terminal M4: 1,7 to 2,3 Nm; (8)terminal connection torque, terminal M8: 8 to 10 Nm.
