Product Summary

The FM400TU-2A is a high power switching use insulated package. The applications of FM400TU-2A include AC motor control of forklift (battery power source), UPS.

Parametrics

FM400TU-2A absolute maximum ratings: (1)Drain-source voltage,VDSS: 100V; (2)Gate-source voltage,VGSS: ±20V; (3)Drain current, ID:±20V; IDM: 400A; (4)Avalanche current, IDA:: 200A; (5)Source current,IS: 200A; ISW: 400A; (6)Maximum power dissipation, PD: 650AW; (7)Channel temperature,Tch: -40 to 150℃; (8)Storage temperature, Tstg: -40 to 125℃; (9)Isolation voltage, Viso: 2500V.

Features

FM400TU-2A features: (1)ID(rms): 200A; (2)VDSS: 100V; (3)Insulated Type; (4)6-elements in a pack; (5)Thermistor inside; (6)UL Recognized: Yellow Card No.E80276, File No.E80271.

Diagrams

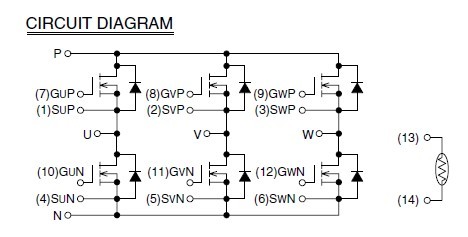

FM400TU-2A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

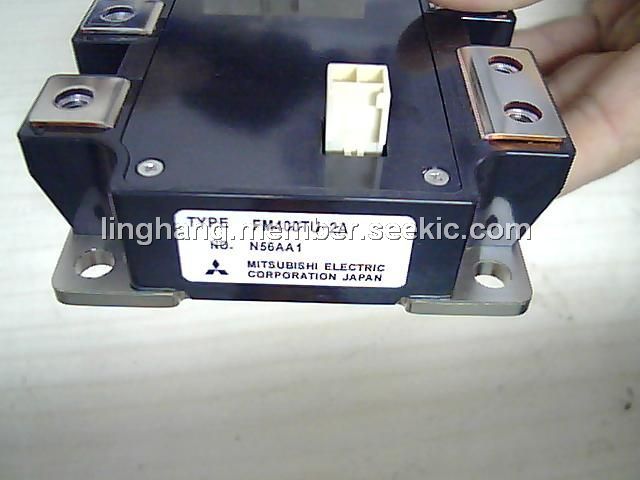

FM400TU-2A
FM400TU-2A

MOSFET MOD 6PAC HP 100V 200A
Data Sheet
0-1: $208.25
