Product Summary

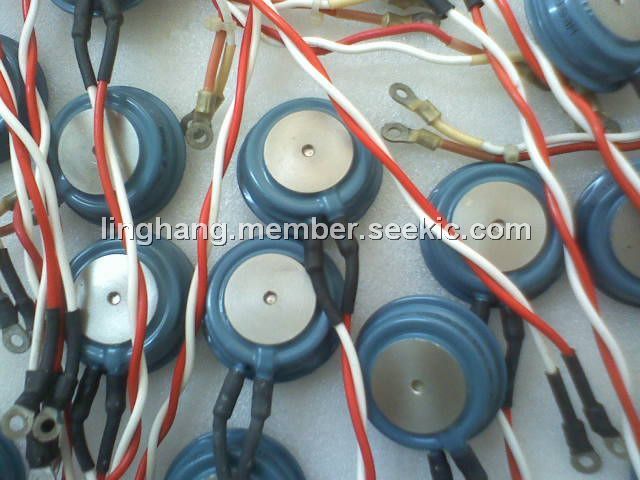

The WG5025FR is a wescode Gate turn-off thyristor which is identified by the prefix " WG" and available in three types , each with its most appropriate application area. Identification of the nominal turn-off current (ITGO)is given by the first two or three digits after the prefix(X 10) , with the next two gigits (X100) identifying the forward blocking voltage(VRRM) capability. The device type is in order to be used in those applications with switching frenquencies up tp 5KHz, and offer low swithching losses with fast turn-off, at the cost of higher on -state losses comparing with the standard symmetrical typles.

Parametrics

Specifications: (1)VDRM:1200V to 2500V when the VGK is -2V; (2)VRRM:100V to 2000V; (3)VGK: 18v; (4)ITGOM: 500A; (5)IT(AV): 280 A at TSUK=55 ℃; (6)Cs: 1 uF; (7)IT(RMS): 540A at TCASE=25℃; (8)Iism: 3kA at T= 10ms; (9)ITSM: 5.4 KA AT T=2ms; (10)I2t: 45×103 A2s.

Features

Features: (1)identified by the prefix " WG" ; (2)used in those applications with switching frenquencies up tp 5KHz; (3)offer low swithching losses with fast turn-off.

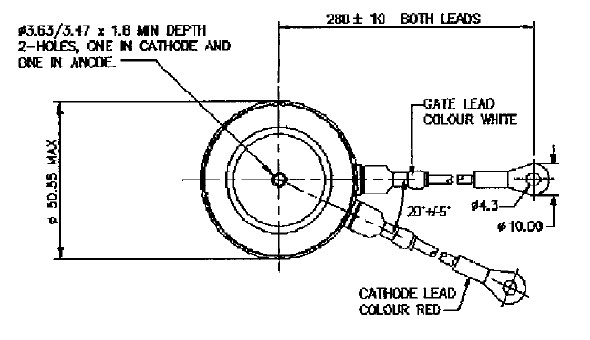

Diagrams
