MCC162-18IO1

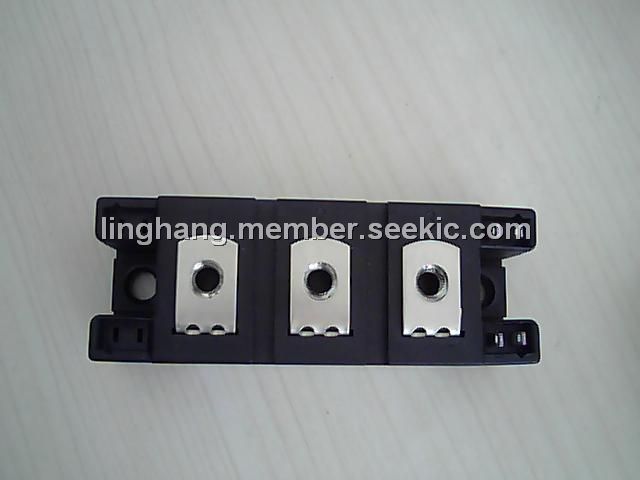

MCC162-18IO1, Thyristor/Diode Module, 1800V, 300A, IXYS Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100.00

PartNumber:: MCC162-18IO1

Brand:: IXYS Corporation - ixys | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Linda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-16

From Other Seller

Part Number:MCC162-18IO1
US $1.00 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MCC162-18IO1 is a Thyristor/Diode Module. The applications of the MCC162-18IO1 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.

Parametrics

MCC162-18IO1 absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 300 A; (2)ITAVM, IFAVM, TC = 80℃; 180° sine: 190 A; TC = 85℃; 180° sine: 181 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 6000 A; VR = 0 t = 8.3 ms (60 Hz), sine: 6400 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 5250 A; VR = 0 t = 8.3 ms (60 Hz), sine: 5600 A; (4)i2dt, TVJ = 45℃ t = 10 ms (50 Hz), sine: 180,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 170,000 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 137,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 128,000 A2s; (5)(di/dt)cr, TVJ = TVJM, f =50 Hz, tP =200 μs, VD = 2/3 VDRM; repetitive, IT = 500 A: 150A/μs; (6)IG = 0.5 A, diG/dt = 0.5 A/μs; non repetitive, IT = 500 A: 500A/μs; (7)(dv/dt)cr, TVJ = TVJM; VDR = 2/3 VDRM; RGK = ∞; method 1 (linear voltage rise): 1000 V/μs; (8)PGM, TVJ = TVJM tP = 30μs: 120 W; IT = ITAVM tP = 500μs: 60 W; (9)PGAV: 8 W; (10)VRGM: 10 V; (11)TVJ: -40 to +125℃; (12)TVJM: 125℃; (13)Tstg: -40 to +125℃.

Features

MCC162-18IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
