Product Summary

The present product data is exclusively subscribed to technically experienced staff. This Data Sheet is describing the specification of the products for which a warranty is granted exclusively pursuant the terms and conditions of the supply agreement. There will be no guarantee of any kind for the product and its specifications. Changes to the Data Sheet are reserved.

Parametrics

Absolute Maximum Ratings: (1)collector emitter voltage, Tvj= 25°C, VCES: 1200V; (2)DC collector current, Tc= 80°C, IC, nom: 300A; (3)DC collector current, Tc= 25°C, IC: 480A; (4)repetitive peak collector current, tp= 1ms, Tc= 80°C, ICRM: 600A; (5)total power dissipation, Tc= 25°C, Transistor, Ptot: 1470W; (6)gate emitter peak voltage, VGES: +/- 20V; (7)DC forward current, IF: 300A; (8)repetitive peak forward current, tp= 1ms, IFRM: 600A.

Features

Features:(1)internal insulation: Al2O3; (2)comperative tracking index: 425; (3)mounting torque, screw M6: 3,0 to 6,0Nm; (4)terminal connection torque, terminals M6: 2,5 to 5,0Nm; (5)weight: 340g.

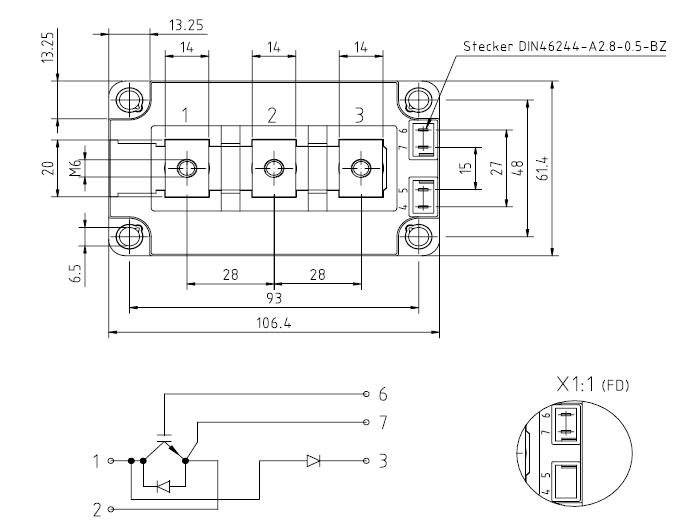

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

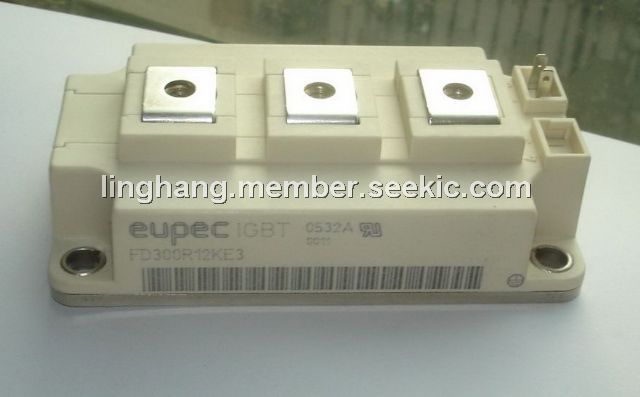

FD300R12KE3
FD300R12KE3

Infineon Technologies

IGBT Transistors 1200V 300A CHOPPER

Data Sheet

0-6: $95.00
6-10: $85.50
