D1170S25T

Product Summary

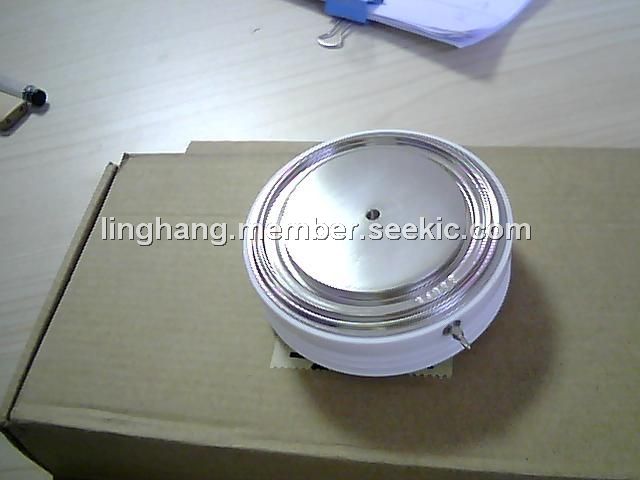

D1170S25T is a fast diode which is produced by Infineon Technologies corporation. Its typical applications include DC power supplies, inverters, converters, choppers, ultrasonic systems, and freewheeling diodes. Some specifications of D1170S25T can be summarized as:(1)Package Type: DO-200AC; (2)Puck Size (h x dia.) in.: 1 x 3 inches; (3)Vrrm (volts): 2,500 Volts; (4)IF (rms) Amps: 3,360 Amps; (5)IF (avg) Amps: 1,170 Amps; (6)Ifsm Amps: 27,500 Amps; (7)I2T@50Hz (A2Sec): 3,780,000; (8)Vfm (volts): 2.62 Volts; (9)trr (nanoseconds): 5,000 NanoSeconds; (10)Junction Temp.: 257 Degrees F; (11)Mounting Force: 18~50 kN ; (12)Picture No.: EUPC_DIOD_DO-200AC; (13)H x W x D (in.): 1.02 x 2.95 x 2.95; (14)Net Weight:1 lb 4 oz.

Parametrics

Maximum rated values:(1)Periodische Spitzensperrspannung repetitive peak forward reverse voltage:VRRM=2000 V at Tvj = - 25°C...Tvj max ; (2)Periodische Spitzensperrspannung repetitive peak forward reverse voltage:VRRM=2500 V ; (3)Stospitzensperrspannung non-repetitive peak reverse voltage:VRSM =2100 V at Tvj = + 25°C...Tvj max ; (4)Stospitzensperrspannung non-repetitive peak reverse voltage:VRSM =2600 V; (5)Durchlastrom-Grenzeffektivwert RMS forward current: IFRMSM= 3360 A; (6)Dauergrenzstrom mean forward current: IFAVM=1170 A at TC =85°C; (7)Dauergrenzstrom mean forward current: IFAVM=2140 A at TC =31°C; (8)Sto?strom-Grenzwert surge foward current: IFSM =27500 A at Tvj = 25°C, tp = 10 ms; (9)Stostrom-Grenzwert surge foward current: IFSM =24000 A at Tvj = Tvj max, tp = 10 ms; (10)Grenzlastintegral I2t-value: I2t=3780000 A2s at Tvj = 25°C, tp = 10ms; (11)Grenzlastintegral I2t-value: 2880000 A2s at Tvj = Tvj max, tp = 10ms.

Features

Mechanical properties:(1)Gehuse, siehe Anlagecase, see appendix: Seite 3, page 3; (2)Si-Element mit Druckkontakt Si-pellet with pressure contact: Durchmesser/diameter 51mm; (3)Anprekraft clamping force: F=18...50 kN; (4)Gewicht weight: G= 560 g typ. ; (5)Kriechstrecke creepage distance:30 mm; (6)Feuchteklasse humidity classification: C at DIN 40040 ; (7)Schwingfestigkeit vibration resistance:50 m/s2 at f = 50Hz.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20113919263384.jpg" border=0>
