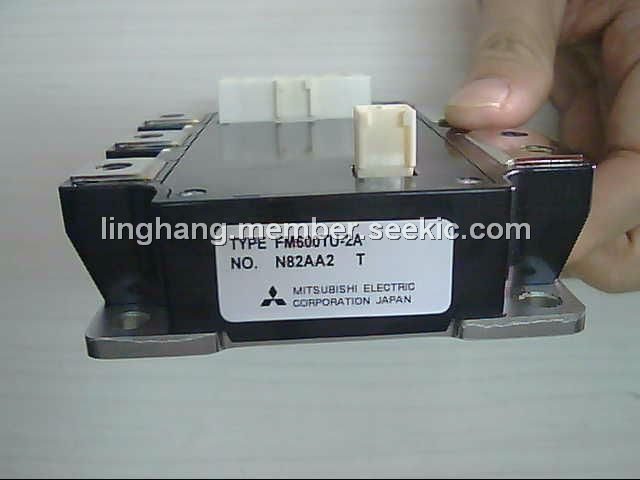

Product Summary

The FM600TU-2A is a 6-pack high power MOSFET module with 300 amperes/100 volts. The FM600TU-2A is designed for use in low voltage switching applications. Each module has 6 MOSFET switches with low Rds(on) and a fast recovery body diode to yield low loss. All components and interconnects are isolated from the heat sink baseplate. This offers simplified system assembly and thermal management. The applications of FM600TU-2A include forklift,off road electric vehicle, welder, UPS and chopper.

Parametrics

FM600TU-2A absolute maximum ratings: (1)Channel temperature:–40 to 150℃; (2)Storage temperature:–40 to 125℃; (3)Drain-source voltage (G-S Short): 100 Volts; (4)Gate-source voltage (D-E Short):±20 Volts; (5)Drain current (TC=133℃): 300 Arms; (6)Peak drain current (Pulse): 600 Amperes; (7)Avalanche current (L=10μH, Pulse) :300* Amperes; (8)Source current (TC = 25℃):300 Arms; (9)Maximum power dissipation (TC=25℃, Tj < 150℃): 960 Watts.

Features

FM600TU-2A features: (1)Low ESW(off) and low Rds(on); (2)Super-fast recovery free-wheel diode;(3)Thermistor for TC sensing; (4)Parallel legs to make a dual; (5)module at 3X the rating; (6)Positive locking connectors;(7) Easy bus bar layout due to flow through power design.

Diagrams

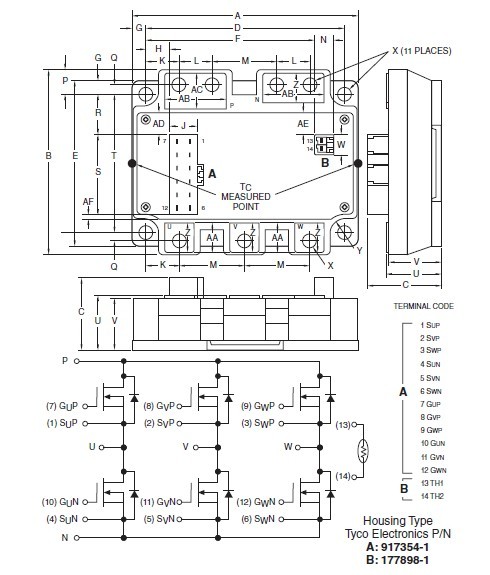

FM600TU-2A circuit diagram
