Product Summary

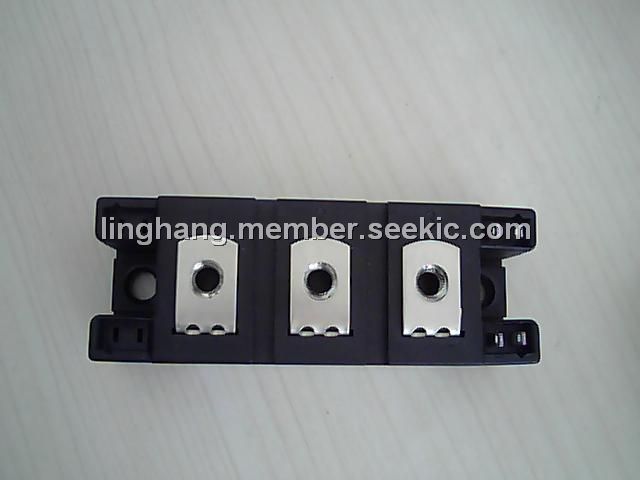

The MCC161-20IO1 is a High Voltage Thyristor Module. The applications of the MCC161-20IO1 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.
Parametrics
MCC161-20IO1 absolute maximum ratings: (1)IRRM, IDRM, VR = VRRM; TVJ = TVJM: 40 mA; (2)VT, IT = 300A; TVJ = 25℃: 1.36 V; (3)VT0, For power-loss calculations only (TVJ = TVJM): 0.8 V; (4)rT: 1.6 mΩ; (5)VGT, VD = 6 V; TVJ = 25℃: 2 V; TVJ = -40℃: 2.6 V; (6)IGT, VD = 6 V; TVJ = 25℃: 150 mA; TVJ = -40℃: 200 mA; (7)VGD, VD = 2/3VDRM; TVJ = TVJM: 0.25 V; (8)IGD, VD = 2/3VDRM; TVJ = TVJM: 10 mA; (9)IL TVJ = 25℃; VD = 6 V; tP = 30 μs: 200 mA; diG/dt = 0.45 A/μs; IG = 0.45 A; (10)IH, TVJ = 25℃; VD = 6 V; RGK = ∞: 150 mA; (11)tgd, TVJ = 25℃; VD = 1/2 VDRM; diG/dt = 0.5 A/μs; IG = 0.5 A: 2 μs; (12)tq, TVJ = TVJM; VR = 100 V; VD = 2/3VDRM; tP = 200 μs; dv/dt = 20 V/μs; IT = 160 A; -di/dt = 10A/μs: typ. 150 μs; (13)QS, TVJ = TVJM: 550 μC; (14)IRM, -di/dt = 50 A/μs; IT = 300 A: 235 A.
Features
MCC161-20IO1 features: (1)International standard package; (2)Direct Copper Bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
