Product Summary

The FM600TU-3A is a MOSFET module. The applications of FM600TU-3A include AC motor control of forkit(battery power source), UPS.

Parametrics

FM600TU-3A absolute maximum ratings: (1)Drain-source voltage: 150 V; (2)Gate-source voltage: ±20 V; (3)Drain current: 300 A; (4)Avalanche current: 300 A; (5)Source current: 300 A; (6)Maximum power dissipation: 960 W at TC=25℃; (7)Channel temperature: -40 to +150℃; (8)Storage temperature: -40 to +125℃.

Features

FM600TU-3A features: (1)ID(rms): 300A; (2)VDSS: 150V; (3)Insulated Type; (4)6-elements in a pack; (5)Thermistor inside; (6)UL Recognized: Yellow Card No.E80276, File No.E80271.

Diagrams

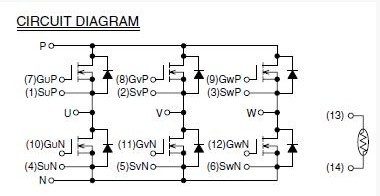

FM600TU-3A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FM600TU-3A
FM600TU-3A


MOSFET MOD 6PAC HP 150V 300A

Data Sheet

0-1: $243.31
