Product Summary
The PM50CLA060 is an IGBT module. The applications of the PM50CLA060 are: General purpose inverter, servo drives and other motor controls.
Parametrics
PM50CLA060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES when VD = 15V, VCIN = 15V: 600 V; (2)Collector Current ±IC when TC = 25℃: 50 A; (3)Collector Current (Peak) ±ICP when TC = 25℃: 100 A; (4)Collector Dissipation PC when TC = 25℃: 101 W; (5)Junction Temperature Tj when: -20 to +150 ℃.
Features
PM50CLA060 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.5V @Tj=125℃; (2)I adopt the over-temperature conservation by Tj detection of; (3)CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.; (4)New small package. Reduce the package size by 10%, thickness by 22% from S-DASH series.

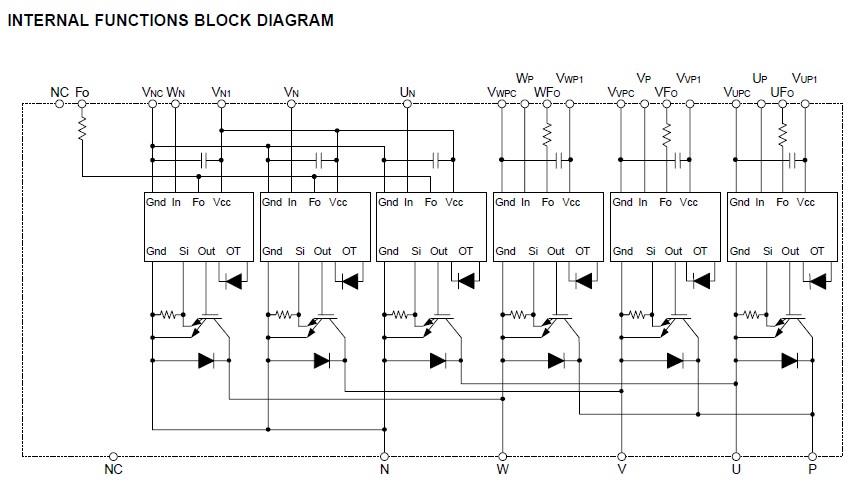

Diagrams
