Product Summary

The PM100RL1A060 is an intelligent power module. The applications of the PM100RL1A060 include General purpose inverter, servo drives and other motor controls.

Parametrics

PM100RL1A060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600V; (2)Collector Current, ±IC: 100A; (3)Collector Current (Peak), ±ICP: 200A; (4)Collector Dissipation, PC: 300W; (5)Junction Temperature, Tj: -20 to +150℃.

Features

PM100RL1A060 features: (1)Adopting new 5th generation Full-Gate CSTBTTM chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBTTM is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package.

Diagrams

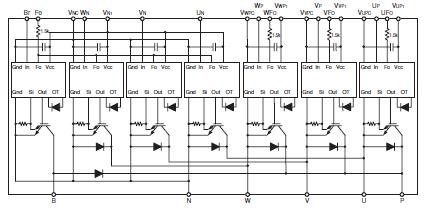

PM100RL1A060 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM100RL1A060
PM100RL1A060
Other

Data Sheet
Negotiable
