Product Summary

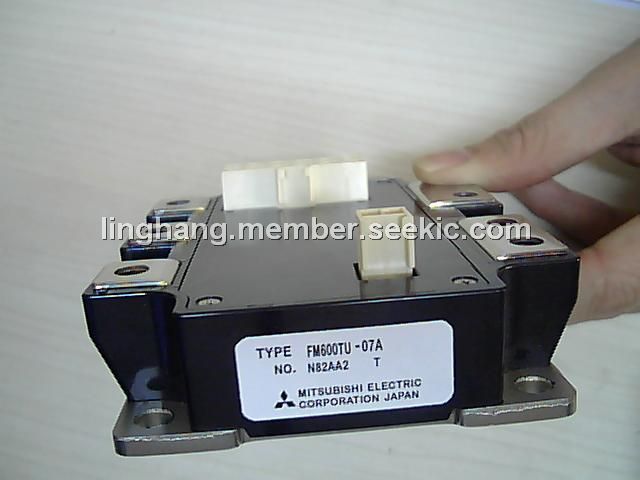

FM600TU-07A is use for HIGH POWER SWITCHING. The ID (rms) valve is 300A and the VDSS is 75V, This is insulated type, 6-elements in a pack. There is thermistor inside, and it is UL Recognized. When concerned to the application, it is widely used in AC motor control of forklift (battery power source), UPS.
Parametrics
Absolute Maximum Ratings: (1)Drain-source voltage, G-S Short: 75; (2)Gate-source voltage, D-S Short: ±20; (3)Drain current, TC’ = 139°C*3; 300; (4)Drain current, Pulse*2: 600; (5)Avalanche current, L = 10μH Pulse*2: 300; (6)Maximum power dissipation, TC = 25°C: 960; (7)Maximum power dissipation, TC’ = 25°C*3: 1300; (8)Channel temperature: –40 ~ +150; (9)Storage temperature: –40 ~ +125; (10)Isolation voltage, Main terminal to base plate, AC 1 min.: 2500; (11)Isolation voltage, Main Terminal M6: 3.5 ~ 4.5; (12)Mounting torque, Mounting M6: 3.5 ~ 4.5; (13)Weight, Typical value: 600.
Features
Features: (1)Insulated Type; (2)6-elements in a pack; (3)Thermistor inside; (4)UL Recognized.

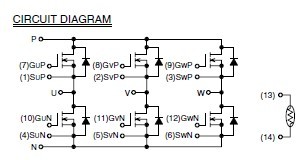

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM600TU-07A |
|
MOSFET MOD 6PAC HP 75V 300A |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
FM600TU-07A |
|
MOSFET MOD 6PAC HP 75V 300A |
Data Sheet |
|
|
||||||
|
FM600TU-2A |
|
MOSFET MOD 6PAC HP 100V 300A |
Data Sheet |
|
|
||||||
|
FM600TU-3A |
|
MOSFET MOD 6PAC HP 150V 300A |
Data Sheet |
|
|
||||||
