Product Summary

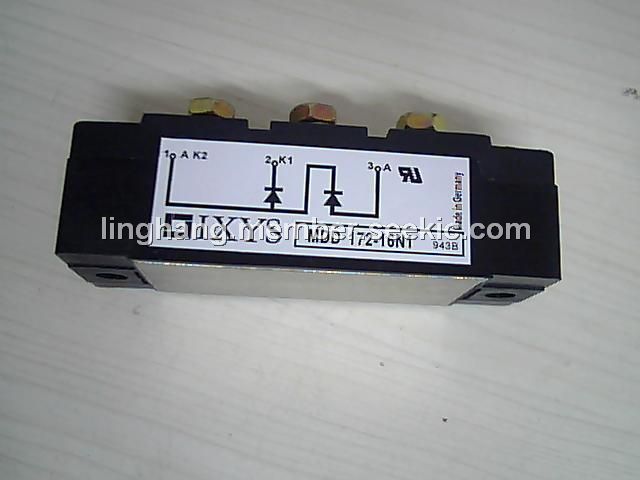

The MDD172-16N1 is a High Power Diode Module. The applications of the MDD172-16N1 include Supplies for DC power equipment, DC supply for PWM inverter, Field supply for DC motors, Battery DC power supplies.
Parametrics
MDD172-16N1 absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 300 A; (2)ITAVM, IFAVM, TC = 85℃; 180°sine: 190 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 6600 A; VR = 0 t = 8.3 ms (60 Hz), sine: 7290 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 5600 A; VR = 0 t = 8.3 ms (60 Hz), sine: 6200 A; (4)I2dt, TVJ = 45℃, t = 10 ms (50 Hz), sine: 218,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 221,000 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 157,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 160,000 A2s; (5)TVJ: -40 to +150℃; (6)TVJM: 150℃; (7)Tstg: -40 to +125℃.
Features
MDD172-16N1 features: (1)International standard package; (2)Direct copper bonded Al2O3 - ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
