Product Summary

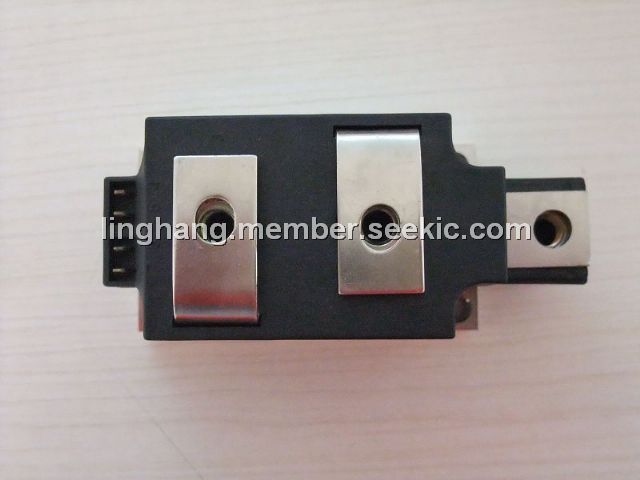

The TT250N14KOF is a Phase Control Thyristor Module.

Parametrics

TT250N14KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages, VDRM,VRRM: 1200 V; (2)non-repetitive peak forward off-state voltage, VDSM: 1200V; (3)non-repetitive peak reverse voltage, VRSM: 1300V; (4)maximum RMS on-state current, ITRMSM: 410 A; (5)average on-state current, ITAVM: 250A; (6)surge current, ITSM: 8000A; (7)I2t-value, I2t: 320000A2s; (8)critical rate of rise of on-state current, (diT/dt)cr: 150 A/μs; (9)critical rate of rise of off-state voltage, (dvD/dt)cr: 1000 V/μs.

Features

TT250N14KOF features: (1)on-state voltage, vT max: 1,5 V; (2)threshold voltage, V(TO): 0,8 V; (3)slope resistance, rT 0,7: mΩ; (4)gate trigger current, IGT max: 200 mA; (5)gate trigger voltage, VGT max: 2V; (6)gate non-trigger current, IGD max: 10 mA.

Diagrams

TT250N14KOF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TT250N14KOF
TT250N14KOF

Infineon Technologies

Discrete Semiconductor Modules 1400V 410A DUAL

Data Sheet

0-4: $126.07
4-10: $113.47
