Product Summary

The ST1200C12K is a Phase Control Thyristor. The applications of the ST1200C12K include DC motor controls, Controlled DC power supplies, AC controllers.

Parametrics

ST1200C12K absolute maximum ratings: (1)IT(AV): 1650 A @ Ths: 55℃; (2)IT(RMS): 3080 A @ Ths: 25℃; (3)ITSM, @ 50Hz: 30500 A; @ 60Hz: 32000 A; (4)I2t, @ 50Hz: 4651 KA2s; @ 60Hz: 4250 KA2s; (5)VDRM/VRRM: 1200 to 2000 V; (6)tq typical: 200 μs; (7)TJ: -40 to 125℃.

Features

ST1200C12K features: (1)Center amplifying gate; (2)Metal case with ceramic insulator; (3)International standard case A-24 (K-PUK); (4)High profile hockey-puk.

Diagrams

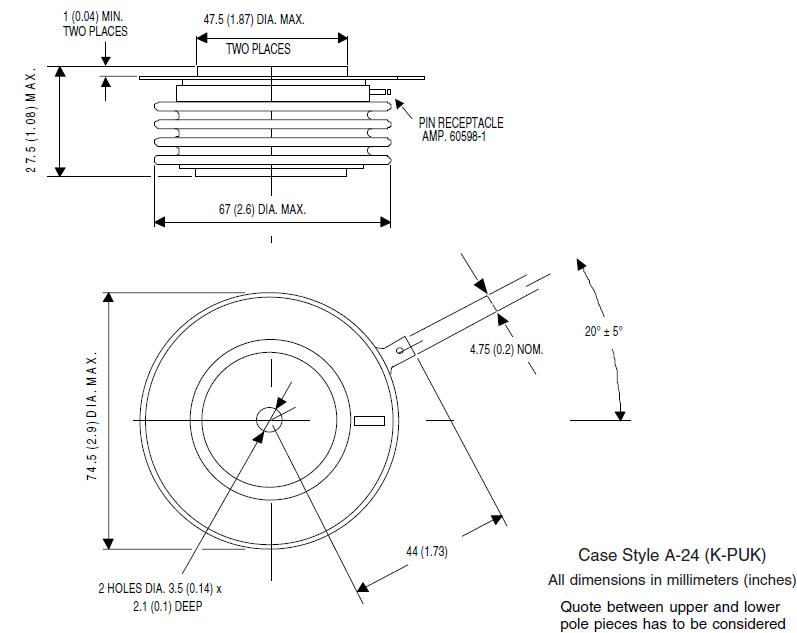

ST1200C12K block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ST1200C12K0
ST1200C12K0

Vishay Semiconductors

SCR Modules 1200 Volt 1650 Amp

Data Sheet

0-1: $218.59
1-5: $196.73
ST1200C12K0P
ST1200C12K0P

Vishay Semiconductors

SCR Modules 1650 Amp 1200 Volt 3080 Amp IT(RMS)

Data Sheet

0-1: $191.27
1-5: $173.05
ST1200C12K1
ST1200C12K1

Vishay Semiconductors

SCR Modules 1650 Amp 1200 Volt 3080 Amp IT(RMS)

Data Sheet

0-1: $191.27
1-5: $173.05
