Product Summary

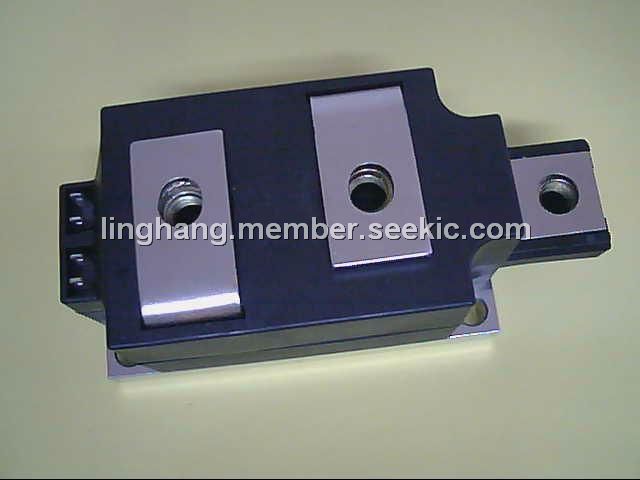

The MCC312-12IO1 is a Thyristor/Diode Module. The applications of the MCC312-12IO1 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.
Parametrics
MCC312-12IO1 absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 520 A; (2)ITAVM, IFAVM, TC = 80℃; 180° sine: 320 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 9200 A; VR = 0 t = 8.3 ms (60 Hz), sine: 6400 A; TVJ = TVJM t = 10 ms (50 Hz): 8000 A; VR = 0 t = 8.3 ms (60 Hz): 8800 A; (4)i2dt, TVJ = 45℃ t = 10 ms (50 Hz), sine: 423,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 423,000 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 320,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 321,000 A2s; (5)(di/dt)cr, TVJ = TVJM, f =50 Hz, tP =200 μs, VD = 2/3 VDRM; repetitive, IT = 960 A: 100A/μs; (6)IG = 0.5 A, diG/dt = 0.5 A/μs; non repetitive, IT = ITAVM: 500A/μs; (7)(dv/dt)cr, TVJ = TVJM; VDR = 2/3 VDRM; RGK = ∞; method 1 (linear voltage rise): 1000 V/μs; (8)PGM, TVJ = TVJM tP = 30μs: 120 W; IT = ITAVM tP = 500μs: 60 W; (9)PGAV: 20 W; (10)VRGM: 10 V; (11)TVJ: -40 to +125℃; (12)TVJM: 125℃; (13)Tstg: -40 to +125℃.
Features
MCC312-12IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MCC312-12io1 |
Ixys |
Discrete Semiconductor Modules 312 Amps 1200V |
Data Sheet |
Negotiable |
|
|||||
