Product Summary
The FM400TU-3A is a high power switching use insulated package. The applications of FM400TU-3A include AC motor control of forklift (battery power source), UPS.
Parametrics
FM400TU-3A absolute maximum ratings: (1)Drain-source voltage,VDSS: 150V; (2)Gate-source voltage,VGSS: ±20V; (3)Drain current, ID:200A; IDM: 400A; (4)Avalanche current, IDA:: 200A; (5)Source current,IS: 200A; ISW: 400A; (6)Maximum power dissipation, PD: 650AW; (7)Channel temperature,Tch: -40 to 150℃; (8)Storage temperature, Tstg: -40 to 125℃; (9)Isolation voltage, Viso: 2500V.
Features
FM400TU-3A features: (1)ID(rms): 200A; (2)VDSS: 150V; (3)Insulated Type; (4)6-elements in a pack; (5)Thermistor inside; (6)UL Recognized: Yellow Card No.E80276, File No.E80271.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

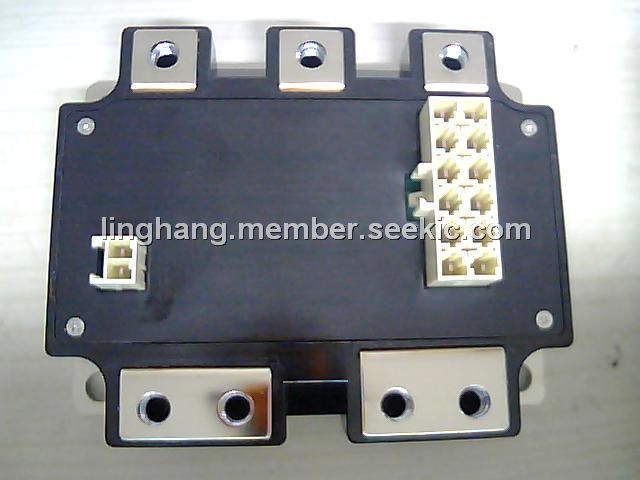

FM400TU-3A |
MOSFET MOD 6PAC HP 150V 200A |
Data Sheet |
|
|
||||||||||
