Product Summary

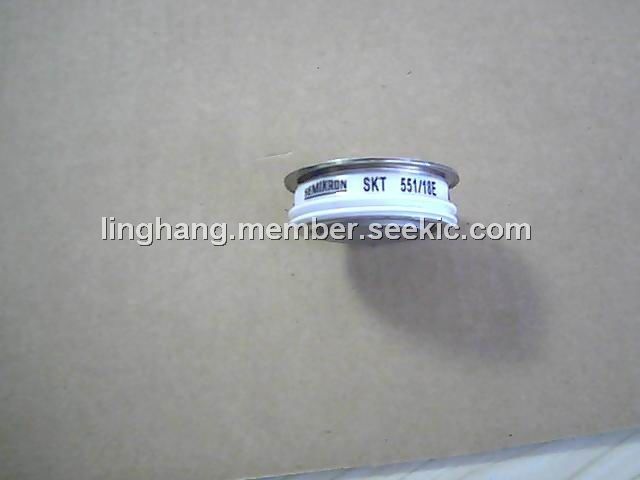

SKT551/18E is a capsule thyristors. It is widely used in DC motor control (e.g. for machine tools), control rectifiers (e.g. for battery charging), AC controllers(e.g. for temperature control) and recommended snubber network. The Vrsm is 1900V and the Vrrm/Vdrm is 1800V when Itrms=1200A(maximum value for continuous operation) Itav=550A(sin. 180; DSC; tC=85℃)。
Parametrics
Absolute maximum ratings:(1)Itav: SIN.180, Tc= 100(85)℃, 391(550)A; (2)Irms: 2xP8/180, Ta=45℃, W1C, 430A; (3)Vt: Tvj=25℃, It=1500A, max. 1,65V; (4)Vt(to): Tvj=125℃, max. 0,9255V; (5)rt: Tvj=25℃, max. 0,45mΩ; (6)Idd, Ird: Tvj=25℃, Vrd=Vdrm, max. 50mA.
Features
Features: (1)Hermetic metal case with ceramic insulator; (2)capsule package for double sided cooling; (3)shallow design with single sided colling; (4)international standard case; (5)off-state and reverse voltages up to 1800V; (6)amplifing gate.

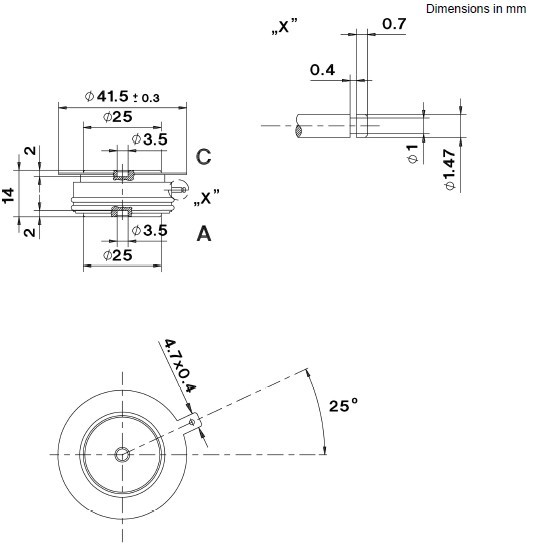

Diagrams
