Product Summary

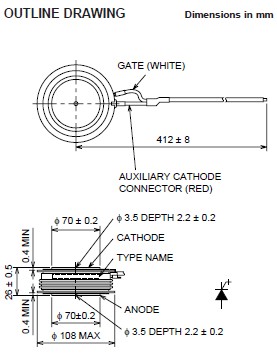

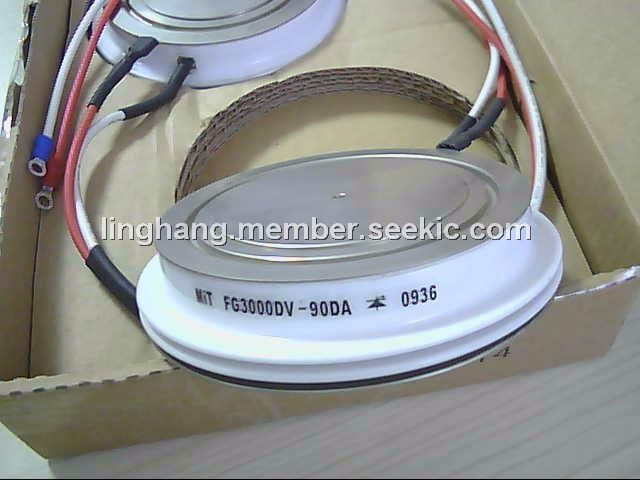

FG3000DV-90DA is a gate turn-off thyristor which is manufactured from MISUBISHI. Its type is press pack. The product is widely used for high power inverter. There are some typical applications including Inverters, D.C. choppers, Induction heaters, D.C. to D.C. converters and so on. The On-state voltage of FG3000DV-90DA is 4v max at Tj = 125°C, ITM = 3000A, Instantaneous measurment.
Parametrics
Maximum ratings:(1)VRRM,Repetitive peak reverse voltage:17V; (2)VRSM,Non-repetitive peak reverse voltage:17V; (3)VR(DC),DC reverse voltage:17v; (4)VDRM,Repetitive peak off-state voltage+:4500v; (5)VDSM,Non-repetitive peak off-state voltage+:4500V; (6)VD(DC),DC off-state voltage+:2500v; (7)ITQRM,Repetitive controllable on-state current:3000A at VDM = 3375V, Tj = 125°C, CS = 6.0mF, LS = 0.3mH; (8)IT(RMS),RMS on-state current:1490A; (9)IT(AV),Average on-state current:950A at f = 60Hz, sine wave q = 180°, Tf = 71°C; (10)ITSM,Surge (non-repetitive) on-state current:17KA at One half cycle at 60Hz; (11)I2t,Current-squared, time integration:1.2 ×106 A2s at One cycle at 60Hz; (12)diT/dt,Critical rate of rise of on-state current:500 A/us at VD = 2250V, IGM = 40A, Tj = 125°C; (13)VFGM,Peak forward gate voltage:10V; (14)VRGM,Peak reverse gate voltage:17V; (15)IFGM,Peak forward gate current:100A; (16)IRGM,Peak gate reverse current:900A; (17)PFGM,Peak forward gate power dissipation:400W; (18)PRGM,Peak reverse gate power dissipation:27kW; (19)PFG(AV),Average forward gate power dissipation:100W; (20)PRG(AV),Average reverse gate power dissipation:230W; (21)Tj,Junction temperature:–40 ~ +125℃; (22)Tstg,Storage temperature:–40 ~ +150℃; (23)Mounting force required:30 ~ 40kN at Recommended value 33; (24)Weight:1220g at Standard value.
Features
Features:(1)ITQRM Repetitive controllable on-state current:3000A; (2)IT(AV) Average on-state current:950A; (3)VDRM Repetitive peak off state voltage:4500V; (4)Anode short type.
