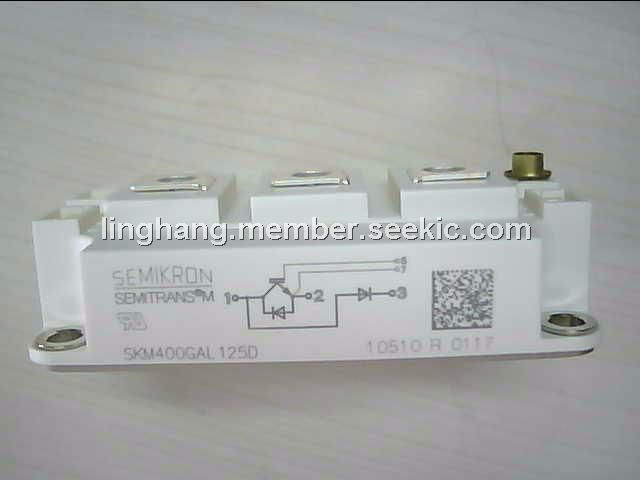

The SKM400GAL125D is an Ultra Fast IGBT Module. The applications of the SKM400GAL125D include switched mode power supplies at fsw>20kHz, resonant inverters up to 100kHz, inductive heating and electronic welders at fsw>20kHz.
Parametrics
SKM400GAL125D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 400A when TC=25℃; 300A wehn Tc=80℃; (3)ICRM: 600A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V.
Features
SKM400GAL125D features: (1)N channel, homogeneous Si; (2)low inductance case; (3)short tail current with low temperature dependence; (4)high short circuit capability, self limiting to 6Icnom; (5)fast & soft inverse CAL diodes; (6)Isolated copper baseplate using DCB direct copper bonding technology; (7)large clearance(13mm) and creepage distance(20mm).
