Product Summary

The 5STP27H1800 is a Phase Control Thyristor.

Parametrics

5STP27H1800 absolute maximum ratings: (1)Peak forward gate voltage, VFGM: 12 V; (2)Peak forward gate current, IFGM: 10 A; (3)Peak reverse gate voltage, VRGM: 10 V; (4)Gate power loss, For DC gate current, PG: 3 W.

Features

5STP27H1800 features: (1)Patented free-floating silicon technology; (2)Low on-state and switching losses; (3)Designed for traction, energy and industrial applications; (4)Optimum power handling capability.

Diagrams

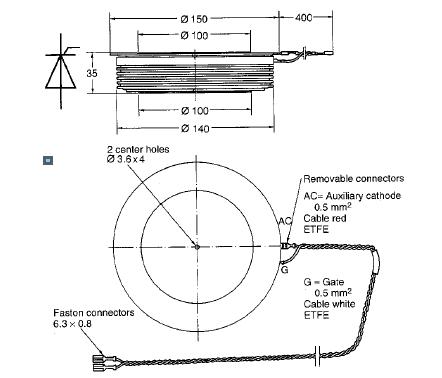

5STP27H1800 block diagram
