Product Summary

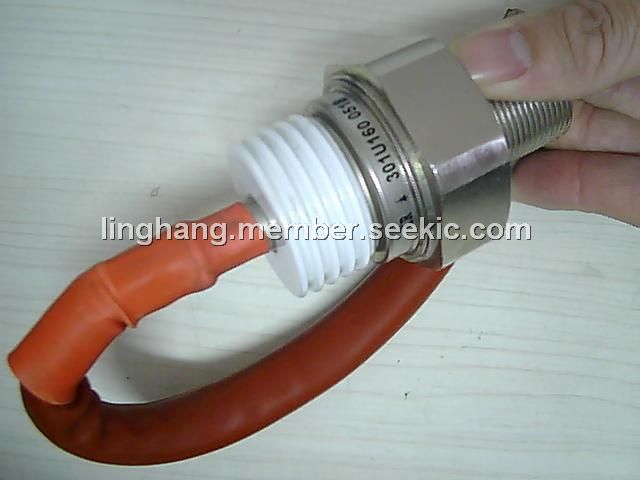

The 301U160 is a Standard Recovery Diode. The applications of the 301U160 inlcude Converters, Power supplies, Machine tool controls, High power drives, Medium traction applications.
Parametrics
301U160 absolute maximum ratings: (1)IF(AV): 330A; TC: 120℃; (2)IF(RMS): 520A; (3)IFSM, 50 Hz: 8250A; 60 Hz: 6335A; (4)I2t, 50 Hz: 183kA2s; 60 Hz: 167kA2s; (5)VRRM, Range: 1600 to 2000V; (6)TJ: -40 to 180℃.
Features
301U160 features: (1)Wide current range; (2)High voltage rating up to 2500 V; (3)High surge current capabilities; (4)Stud cathode and stud anode version; (5)High resistance to acceleration; (6)RoHS compliant; (7)Designed and qualified for industrial level.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 301U160 |
|
DIODE STD REC 1600V 300A DO-9 |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
301U(R) |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
301U100 G R G |
|
DIODE STD REC 1000V 300A DO-9 |
Data Sheet |
Negotiable |
|
||||||
|
301U120 |
|
DIODE STD REC 1200V 300A DO-9 |
Data Sheet |
Negotiable |
|
||||||
|
301U160 |
|
DIODE STD REC 1600V 300A DO-9 |
Data Sheet |
|
|
||||||
|
301U200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
301U250 |
|
DIODE STD REC 2500V 300A DO-9 |
Data Sheet |
|
|
||||||
