Product Summary

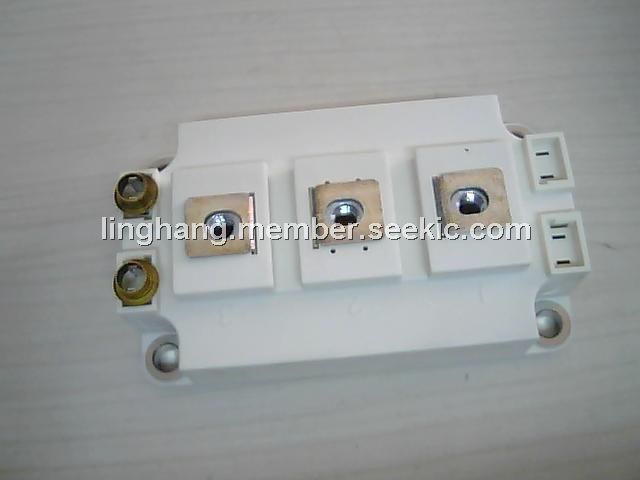

The SKM300GB123D is an IGBT Module.

Parametrics

SKM300GB123D absolute maximum ratings: (1)VCES: 1200 V; (2)IC @ Tcase=25℃: 300 A; (3)VCEsat @ Ic=25℃: 3.2 V; (4)Ptot @ Tcase=25℃: 1400 W; (5)Rthjo IGBT: 0.09 ℃/W; (6)RthCH module: 0.038 ℃/W; (7)case: D56.

Features

SKM300GB123D features: (1)MOS input (voltage controlled);(2)N-channel, homogeneous Si;(3)low inductance case;(4)very low tail current with low temperature dependance;(5)high short circuit capability, self limiting to 6 x Icnom;(6)latch-up free;(7)fast and soft inverse CAL diodes;(8)isolated copper baseplate using DBC direct copper bonding technology;(9)large clearance (12 mm) and creepage distances (20 mm).

Diagrams

SKM300GB123D block diagram
