Product Summary
The SG1500GXH25 is a gate turn-off thyristor.
Parametrics
SG1500GXH25 absolute maximum ratings: (1)Repetitve peak off-state, VDRM: 4500V; (2)Repetitve peak reverse voltage, VRRM: 4000V; (3)Peak turn-off current, ITGDM: 1500A; (4)RMS on-state current, IT: 750A; (6)peak one cycle surge on-state current, ITSM: 8000A; (7)Critical rate of rise of on-stste, DI/DT: 250A/μs; (8)peak forward gate current, IFGM: 70A; (9)Average gate power dissipation, PG: 150W; (10)RMS gate current, IG: 42A; (11)Operating junction temperature, TJ: -40 to +115℃; (12)Storage temperature range, TSTG: -40 to +115℃.
Features
SG1500GXH25 features: (1)Repetitive Peak Off-State Voltage, VDRM=4500V; (2)Repetitive peak reverse voltage: VRRM=4000V; (3)RMS on-state current: IT=750A; (4)Peak turn-off Current: IRGQM=1500A; (5)Critical Rate of Rise of On-State Current: di/dt=250A/μs; (6)Critical Rate of Rise of Off-State Voltage: dv/dt=900V/μs.

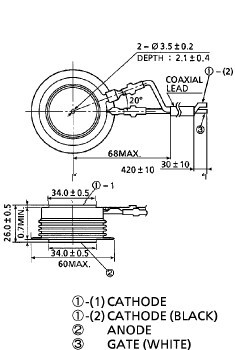

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG1500GXH25 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
