Product Summary
The SD300N32PBC is a standard recovery diode. The applications of the SD300N32PBC include Converters, Power supplies, Machine tool controls, High power drives, Medium traction applications.
Parametrics
SD300N32PBC absolute maximum ratings: (1)IF(AV) 380A; @ TC: 70℃; (2)IF(RMS): 425 A; (3)IFSM @50Hz: 6050 A; @ 60Hz: 6335 A; (4)I2t @50Hz: 183 KA2s; @ 60Hz: 167 KA2s; (5)VRRM range: 2500 to 3200 V; (6)TJ: -40 to 150℃.
Features
SD300N32PBC features: (1)Wide current range; (2)High voltage ratings up to 3200V; (3)High surge current capabilities; (4)Stud cathode and stud anode version; (5)Standard JEDEC types.

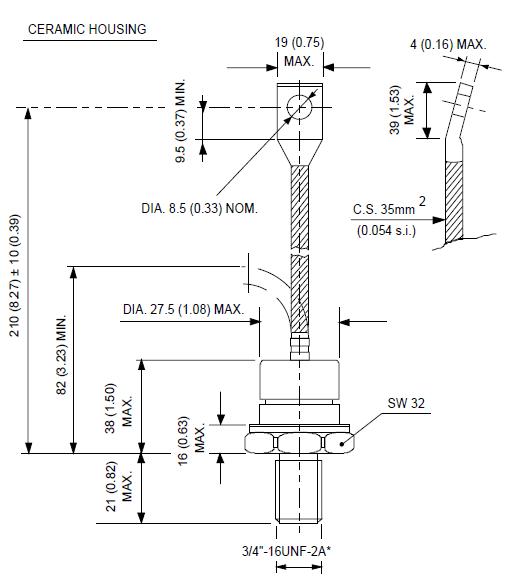

Diagrams
 |
 SD3000C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD3000C..K |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD3000K |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD300C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD300C..C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |

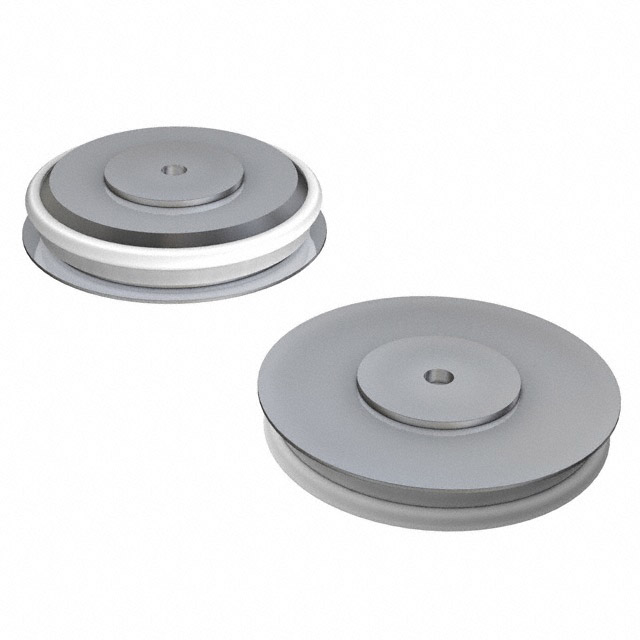

SD300C16C |
|
