Product Summary

The S0700KC17D is a Gate Turn Off Thyristor. The applications of the S0700KC17D include AC industrial drives FACTs and Active VAr controllers.

Parametrics

S0700KC17D absolute maximum ratings: (1)VGK=-2V, VDRM: 1700V; (2)VRRM: 1360V; (3)ITGQM @ CS: 700A @ 1.5μF; (4)IT=ITGQM, VT: 2.2V; (5)Typ. Switching Times, tgt: 3.5μs; tgq: 10μs.

Features

S0700KC17D features: (1)Advanced Technologies include buffer layer, fine pattern geometry and transparent emitter; (2)Controllable current ratings up to 4000A; (3)Pressure contact construction; (4)Available in 6 package sizes to industry standards.

Diagrams

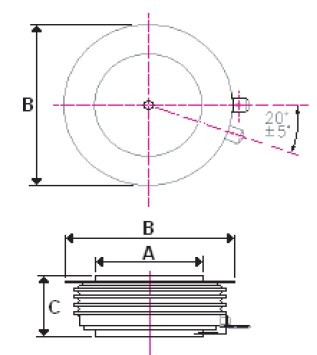

S0700KC17D block diagram
