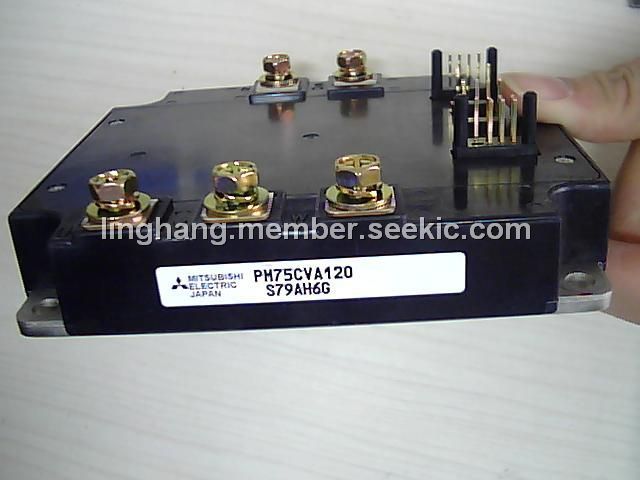

The PM75CVA120 is an intelligent power module. The applications of the PM75CVA120 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM75CVA120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Collector Current, ±IC: 75A; (3)Collector Current (Peak), ±ICP: 150A; (4)Collector Dissipation, PC: 455W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM75CVA120 features: (1)3φ75A, 1200V Current-sense IGBT for 20kHz switching; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage; (4)(P-FO available from upper leg devices); (5)Acoustic noise-less 15kW class inverter application; (6)UL Recognized.

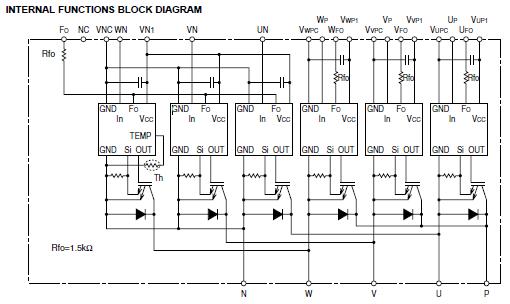

Diagrams
