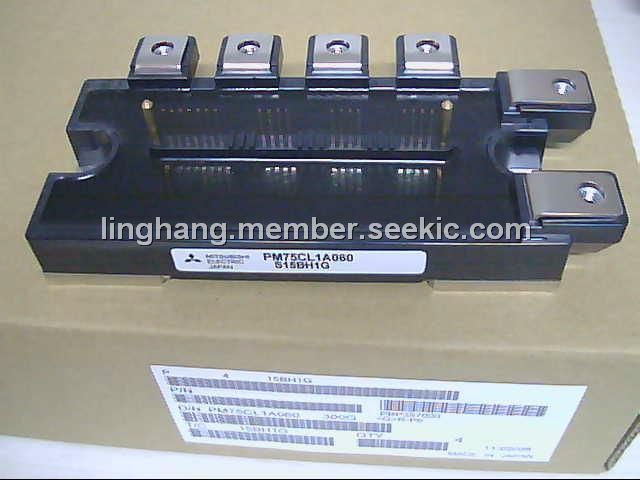

The PM75CL1A060 is an intelligent power module. The applications of the PM75CL1A060 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM75CL1A060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600V; (2)Collector Current, ±IC: 75A; (3)Collector Current (Peak), ±ICP: 150A; (4)Collector Dissipation, PC: 337W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM75CL1A060 features: (1)Adopting new 5th generation Full-Gate CSTBTTM chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBTTM is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package.
