Product Summary

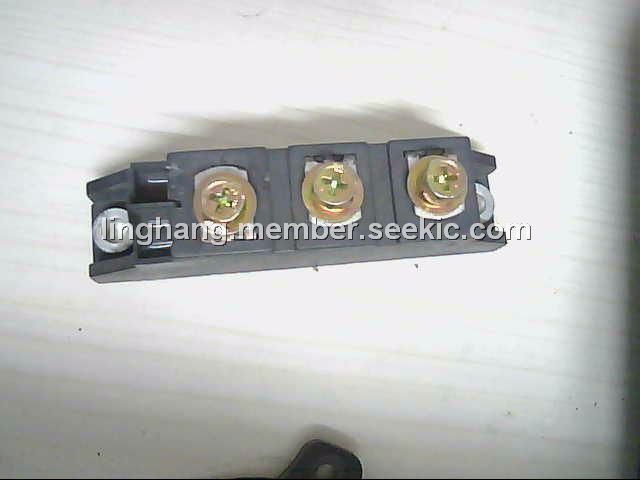

The MEE75-12DA is a Fast Recovery Epitaxial Diode (FRED) Module. The applications of the MEE75-12DA include Antiparallel diode for high frequency switching devices, Free wheeling diode in converters and motor control circuits, Inductive heating and melting, Uninterruptible power supplies (UPS), Ultrasonic cleaners and welders.
Parametrics
MEE75-12DA absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 107 A; (2)ITAVM, IFAVM, TC = 85℃; 180°sine: 75 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 1200 A; VR = 0 t = 8.3 ms (60 Hz), sine: 1300 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 1080 A; VR = 0 t = 8.3 ms (60 Hz), sine: 1170 A; (4)I2dt, TVJ = 45℃, t = 10 ms (50 Hz), sine: 7200 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 7100 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 5800 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 5700 A2s; (5)TVJ: -40 to +150℃; (6)Tstg: -40 to +125℃; (7)THmax: 110℃.
Features
MEE75-12DA features: (1)International standard package with DCB ceramic base plate; (2)Planar passivated chips; (3)Short recovery time; (4)Low switching losses; (5)Soft recovery behaviour; (6)Isolation voltage 3600 V; (7)UL registered E 72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MEE75-12DA |
Ixys |
Discrete Semiconductor Modules 75 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
