Product Summary

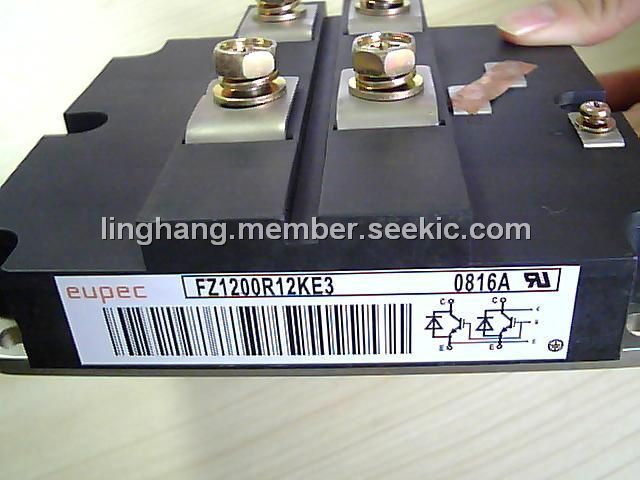

The FZ1200R12KE3 is an IGBT module.

Parametrics

FZ1200R12KE3 absolute maximum ratings: (1)Kollektor emitter sperrspannung, VCES: 3300V; (2)Kollektor daurgleichstrom, ICnom: 1200A; (3)DC collector current, IC: 2000A; (4)Periodischer kollektor spitzenstrom, ICRM: 2400A; (5)Gate emitter spitzenspannung, VGES: +/-20V.

Features

FZ1200R12KE3 features: (1)Isolation prufspannung: 6.0kV; (2)Teilentiadungs aussetzespannung partial discharge extinction voltage, 2.6kV; (3)Kollektor emitter gleichsperrsannung DC stability: 1800V; (4)Material modulgrundplatte material of module baseplate AISic.

Diagrams

FZ1200R12KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ1200R12KE3
FZ1200R12KE3
Infineon Technologies
IGBT Transistors 1200V 1200A SINGLE
Data Sheet
0-2: $384.02
2-3: $345.62
3-5: $307.22
5-10: $292.70
