Product Summary

The FD400R12KF4 is an IGBT Module.

Parametrics

FD400R12KF4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 400 A; (3)repetitive peak collctor current tp=1 ms, ICRM: 800 A; (4)total power dissipation tC=25℃, Transistor /transistor, Ptot: 2700 W; (5)gate-emitter peak voltage, VGE: ±20 V; (6)DC forward current, IF: 400 A; (7)repetitive peak forw. current tp=1ms, IFRM: 800 A; (8)insulation test voltage RMS, f=50 Hz, t= 1 min., VISOL: 2,5 kV.

Features

FD400R12KF4 features: (1)supply voltage: 1200V; (2)supply current: 400A; (3)IGBT module.

Diagrams

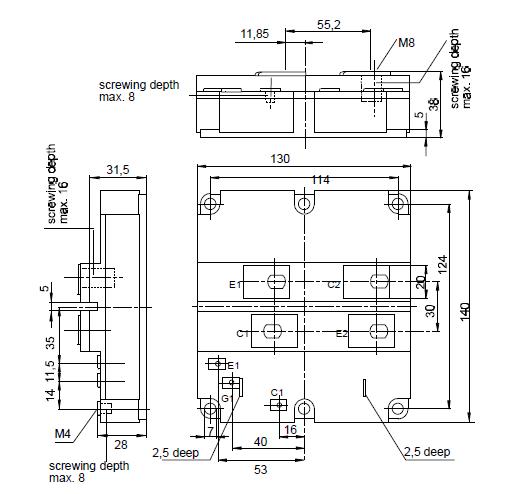

FD400R12KF4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

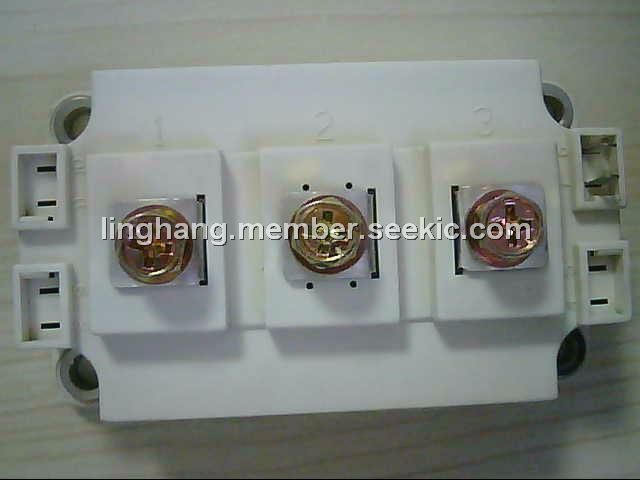

FD400R12KF4
FD400R12KF4
Infineon Technologies
IGBT Modules 1200V 400A CHOPPER
Data Sheet
0-1: $675.89
1-3: $638.93
3-5: $604.48
5-10: $593.12
