Product Summary

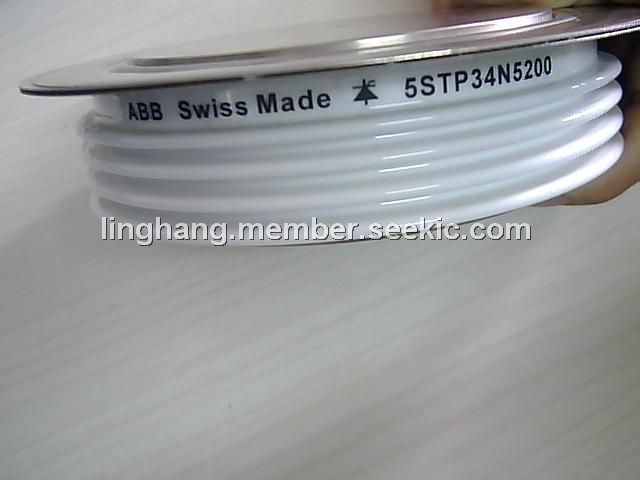

The 5STP34N5200 is a Phase Control Thyristor.

Parametrics

5STP34N5200 absolute maximum ratings: (1)Peak forward gate voltage, VFGM: 12 V; (2)Peak forward gate current, IFGM: 10 A; (3)Peak reverse gate voltage, VRGM: 10 V; (4)Gate power loss, For DC gate current, PG: 3 W.

Features

5STP34N5200 features: (1)Patented free-floating silicon technology; (2)Low on-state and switching losses; (3)Designed for traction, energy and industrial applications; (4)Optimum power handling capability; (5)Interdigitated amplifying gate.

Diagrams

5STP34N5200 block diagram
