Product Summary

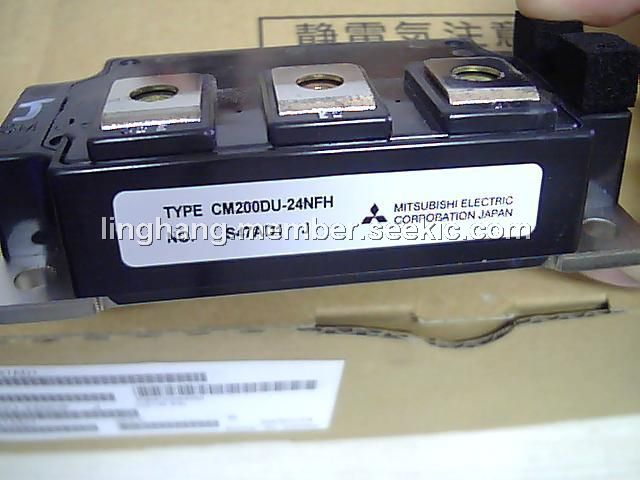

The CM200DU-24NFH is an IGBT Module. It is designed for use in high frequency applications; 30kHz for hard switching applications and 60 to 70 kHz for soft switching applications.

Parametrics

CM200DU-24NFH absolute maximum ratings: (1)Junction Temperature: -40℃ to 150℃; (2)Storage Temperature: -40℃ to 125℃; (3)Collector-Emitter Voltage (G-E Short): 1200Volts; (4)Gate-Emitter Voltage (C-E Short): ±20Volts; (5)Collector Current (TC=25℃): 200Amperes; (6)Peak Collector Current: 400Amperes; (7)Emitter Current(TC=25℃): 200Amperes; (8)Peak Emitter Current: 400Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj≤ 150℃): 830Watts; (10)Maximum Collector Dissipation (TC= 25℃, Tj ≤ 150℃): 1300Watts; (11)Mounting Torque, M6 Main Terminal: 40in-lb; (12)Mounting Torque, M6 Mounting: 40in-lb; (13)Weight: 400Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500Volts.

Features

CM200DU-24NFH features: (1)Low ESW(off); (2)Discrete Super-Fast Recovery Free-Wheel Diode; (3)Isolated Baseplate for Easy Heat Sinking.

Diagrams

CM200DU-24NFH block diagram
