Product Summary

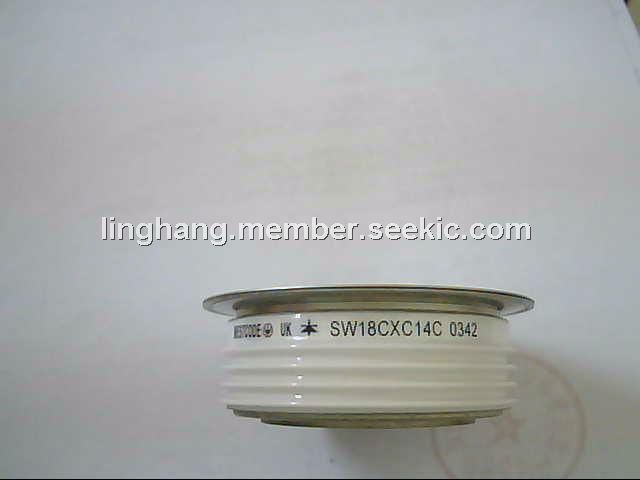

The SW18CXC14C is a capsule rectifier diode. The SW18CXC14C consists of a diffused silicon element mounted in an hermetic ceramic cold welded capsule. Available in industry standard and thin housings.

Parametrics

SW18CXC14C absolute maximum ratings: (1)Average forward current, IF(av): 3270A; (2)RMS FORWARD CURRENT, IF(rms): 5920A; (3)Continuous forward current, IF: 5140A; (4)Peak one-cycle surge: 33.0KA; (5)Maximum permissible surge energy, I2T: 6850000 A2S; (6)Operating temperature range, TJ: -55 to +175℃; (7)Storage temperature, Tstg: -55 to +200℃.

Features

SW18CXC14C features: (1)Peak forward voltage, VFM: 1.47V; (2)Forward conduction threshold voltage, VO: 0.73V; (3)Forward conduction slope resistance, R: 0.116Ω; (4)Repetitive peak reverse current, IRRM: 50mA; (5)Thernal resistance, junction to heat sink, RTH: 0.022℃/W.

Diagrams

SW18CXC14C block diagram
