Product Summary

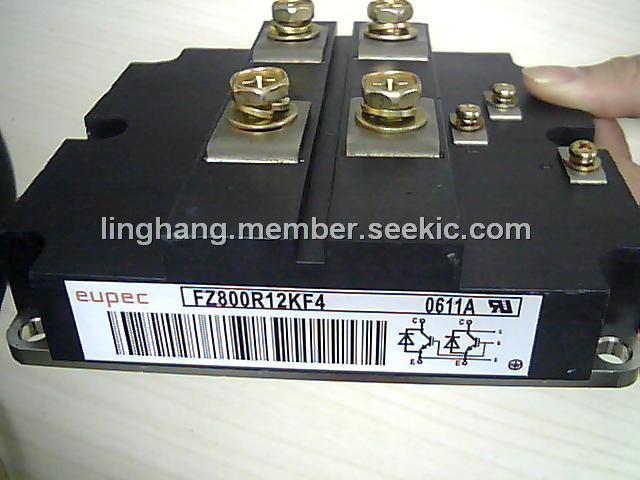

The FZ800R12KF4 is an IGBT module.

Parametrics

FZ800R12KF4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 800 A; (3)repetitive peak collctor current, ICRM: 1600 A; (4)total power dissipation, Ptot: 5400 W; (5)gate-emitter peak voltage, VGE: ± 20 V; (6)DC forward current, IF: 800 A; (7)repetitive peak forw. current, IFRM: 1600 A; (8)insulation test voltage, VISOL: 2,5 kV.

Features

FZ800R12KF4 features: (1)forward voltage, VF 2.2 to 2.7V; (2)peak reverse recovery current, IRM: 280A; (3)recovered charge, Qr: 35μAs.

Diagrams

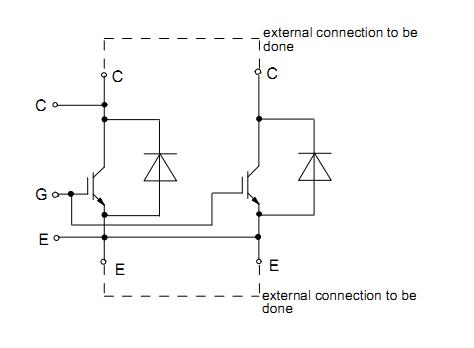

FZ800R12KF4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ800R12KF4
FZ800R12KF4

Infineon Technologies

IGBT Modules 1200V 800A SINGLE

Data Sheet

0-2: $358.98
2-3: $323.08
3-5: $287.19
5-10: $274.90
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ800R12KE3
FZ800R12KE3

Infineon Technologies

IGBT Modules 1200V 800A

Data Sheet

0-6: $132.64
6-10: $119.36
FZ800R12KF4
FZ800R12KF4

Infineon Technologies

IGBT Modules 1200V 800A SINGLE

Data Sheet

0-2: $358.98
2-3: $323.08
3-5: $287.19
5-10: $274.90
FZ800R12KF5
FZ800R12KF5

Infineon Technologies

IGBT Modules

Data Sheet

0-2: $555.60
2-10: $501.00
FZ800R12KL4C
FZ800R12KL4C

Infineon Technologies

IGBT Modules 1200V 800A SINGLE

Data Sheet

0-1: $358.67
1-3: $322.24
3-5: $286.43
5-10: $268.53
FZ800R12KS4_B2
FZ800R12KS4_B2

Infineon Technologies

IGBT Modules N-CH 1.2KV 1.2KA

Data Sheet

0-2: $549.91
2-10: $494.90
FZ800R16KF4
FZ800R16KF4

Infineon Technologies

IGBT Modules 1600V 800A SINGLE

Data Sheet

0-2: $462.20
2-3: $416.35
3-5: $370.09
5-10: $346.96
