Product Summary

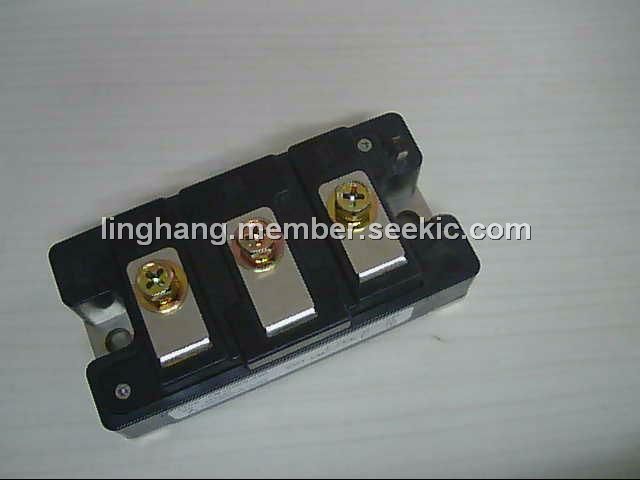

The CM100DU-24H is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast re-covery free-wheel diode. All components and interconnects are isolated from the heat sinking base-plate, offering simplified system assembly and thermal management. The applications of the CM100DU-24H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

CM100DU-24H absolute maximum ratings: (1)Junction Temperature, Tj:–40 to 150℃; (2)Storage Temperature, Tstg: –40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 100 Amperes; (6)Peak Collector Current, ICM: 200 Amperes; (7)Emitter Current (TC = 25℃), IE: 100 Amperes; (8)Peak Emitter Current, IEM: 200 Amperes; (9)Maximum Collector Dissipation , Pc: 650 Watts; (10)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

CM100DU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

Diagrams

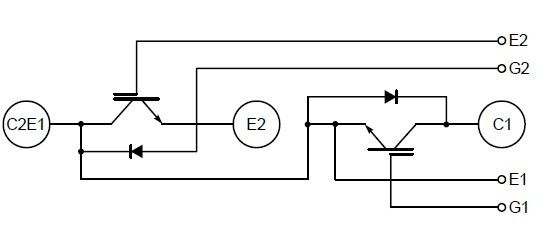

CM100DU-24H block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM100DU-24H
CM100DU-24H

IGBT MOD DUAL 1200V 100A U SER
Data Sheet
0-2: $65.29
