Product Summary

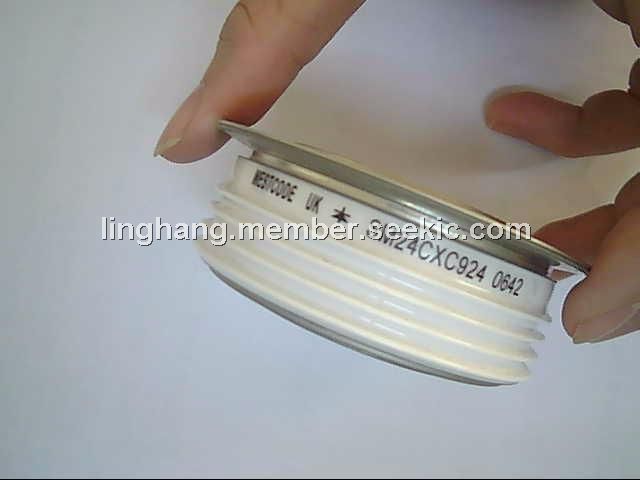

The SM24CXC924 is a Fast Recovery Rectifier.

Parametrics

SM24CXC924 absolute maximum ratings: (1)Average forward current, IF(av): 1265A; (2)RMS current, IF(RMS): 2540A; (3)DC forward current, IF: 2100A; (4)Ppeak one-cycle surge, IFSM: 19600A; (5)Maximum surge I2t, I2t: 1920000A2s; (6)Operating temperature, Ths: -40 to +125℃; (7)Storage temperature range, Tstg: -40 to +150℃.

Features

SM24CXC924 features: (1)Peak forward volt drop, VFM: 2.34V; (2)Forward conduction slope resistance, R: 0.265mΩ; (3)Peak reverse current, IRRM: 60mA; (4)Thermal resistance, Rth: 0.028℃/W; (5)Reverse recovered charge, QRR: 378μC; (6)Reverse recovery time, TRR: 4.9μs.

Diagrams

SM24CXC924 block diagram

SM24.TCT
SM24.TCT
