Product Summary

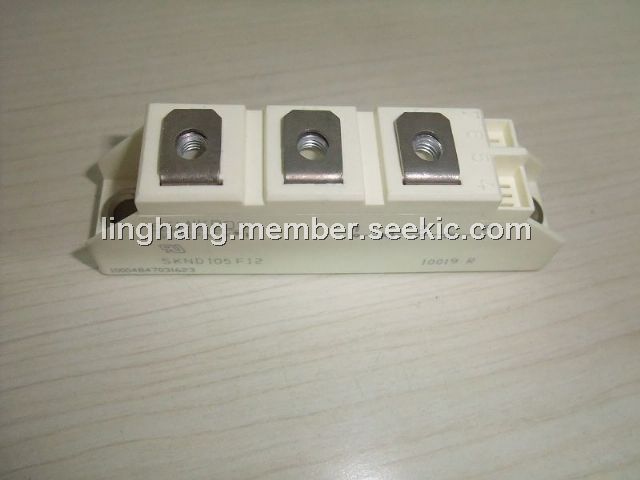

The SKND105F12 is a Fast Diode Module. The applications of the SKND105F12 include Self-commutated inverters, DC choppers, AC motor speed control, Inductive heating, Uninterruptible power supplies, Electronic welders, General power switching applications.
Parametrics
absolute maximum ratings: (1)Sin. 180; TC=85(100)℃, IFAV: 102(65)A; (2)IFSM: 2500A; (3)I2t: 31250A2s; (4)VF: max.2.05V; (5)V(TO): max.1.2V; (6)rT: max.2.5Ω; (7)IRD: max.1mA; (8)IRD: max.30mA.
Features
features: (1)Heat transfer through ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)SKKD half bridge connection; centre tap connections: SKMD common catchode, SKND common anode; (4)UL recognized, file no. E63432.
Diagrams
