Product Summary

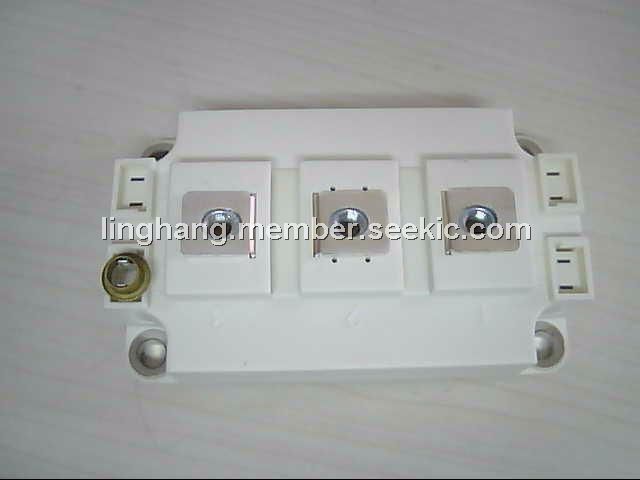

The SKM400GAL128D is a SPT IGBT Module. The applications of the SKM400GAL128D include AC inverter drivers, UPS, Electronic welders at fsw up to 20KHz.

Parametrics

SKM400GAL128D absolute maximum ratings: (1)VCES, Tj=25℃: 1200V; (2)IC, Tj=150℃, TC=25℃: 565A; TC=80℃, IC: 400A; (3)ICRM, ICRM=2×ICNOM: 600A; (4)VGES: ±20V; (5)tpsc, VCC=600V; VGE≤20V; Tj=125℃: 10μs.

Features

SKM400GAL128D features: (1)Homogeneous Si; (2)SPT=Soft-puch-through technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6×Ic.

Diagrams

SKM400GAL128D block diagram
