SKM200GB125D

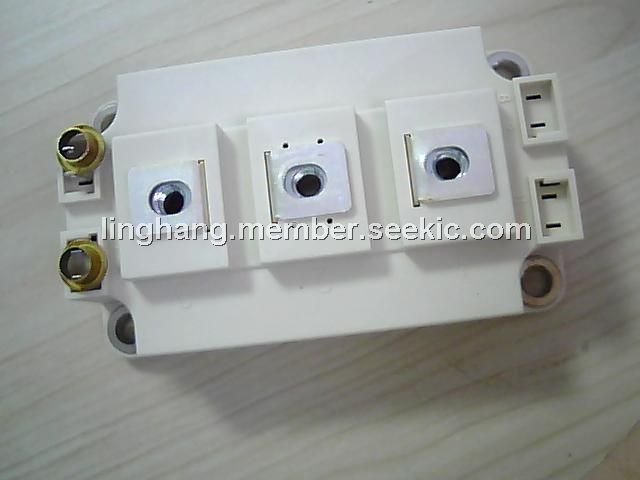

SKM200GB125D, ultra fast IGBT module, 200A, 1200V, Semikron International

Rated 5 Rating 5 | reviews | Write a review

Price:: US $50.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $50.00~100.00

PartNumber:: SKM200GB125D

Brand:: Semikron International - SEMIKRON | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Linda's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-20

From Other Seller

Part Number:SKM200GB125D
US $50.00 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SKM200GB125D is an ultra fast IGBT module. The typical applications of the device include switched mode power supplies at fsw>20kHz, resonant inverters up to 100kHz, inductive heating and electronic welders at fsw>20kHz.

Parametrics

SKM200GB125D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 200A when TC=25℃; 160A wehn Tc=80℃; (3)ICRM: 300A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 400V; (8)inverse diode, IF: 200A when Tc=25℃; 130A when Tc=80℃; IFRM: 300A; IFSM: 1450A; (9)freewheeling diode, IF: 200A when Tc=25℃; 130A when Tc=80℃; IFRM: 300A; IFSM: 1450A.

Features

SKM200GB125D features: (1)N channel, homogeneous Si; (2)low inductance case; (3)short tail current with low temperature dependence; (4)high short circuit capability, self limiting to 6Icnom; (5)fast & soft inverse CAL diodes; (6)isolated copper baseplate using DCB direct copper bonding technology; (7)large clearance and creepage distance.
