Product Summary

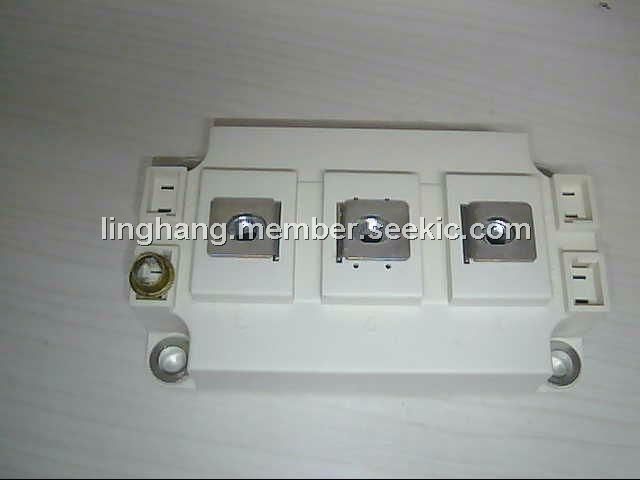

The SKM200GAL123D is a SPT IGBT Module.
Parametrics
SKM200GAL123D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 300A; (3)ICRM: 300A; (4)VGES: ±20V; (5)tpsc: 10μS; (6)IF: 200A; (7)IFRM: 300A; (8)IFSM: 1440A; (9)It: 500A; (10)Tvj: -40 to 150℃; (11)Tstg: -40 to 125℃; (12)Visol: 2500V.
Features
SKM200GAL123D features: (1)MOS input; (2)N channel, homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6*Icnom; (6)Latch up free; (7)Fast soft inverse CAL diodes; (8)Isolated copper baseplate using DCB Direct Copper Bonding Technology; (9)Large clearance and creepage distances.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM200GAL123DKLD110 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKM200GAL123DKLD110 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
